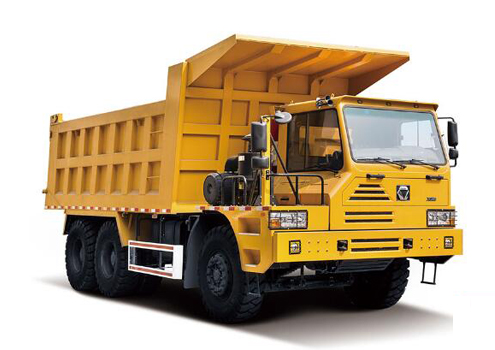

65T Truck

XCMG’s off-highway heavy-duty dump truck products are widely applicable to engineering construction involving open-pit mining, water conservancy construction, short-distance heavy-load port transportation, reclamation and land formation, etc. The whole truck has been shaped after thousands of high-strength industrial examinations and tests at different construction sites and has incomparable adaptability to complex operating conditions when compared with traditional dump trucks. With excellent overall vehicle performance, the product has passed high performance test at national military test fields and TUV certification and won multiple honors including grade III national mechanical industry science and technology prize, excellent new product patent prize of Jiangsu equipment manufacturing industry, etc. At present, both the domestic sales volume and export volume of the product are among the best in the industry.
Project Unit Parameter
Vehicle type code No. - TFW113
Vehicle type - NXG5650DT
Cab - Single side offset
Drive mode - 6×4
Parameter
Max. total weight (T) 65
Maximum gradeability - 0.45
Full-load maximum speed (km/h) 45
Chassis
Wheelbase (mm) 3800+1560
Engine - WD12.375
Transmission - Allision 4430 ORS automatic transmission
Front axle (T) 13t
Intermediate and rear axles (T) 25t
Gear ratio - 14.878
Fuel tank (L) 400
Tyre - 14.00-24 engineering tyre optional13.00-25 engineering tyre
Upside
Carriage specification (mm) 5800×3000×1600
