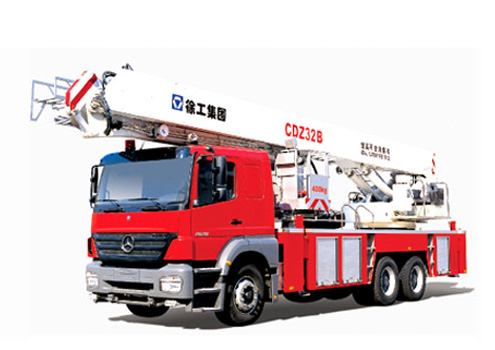

CDZ32B Fire Truck Technical Specifications:
|
Main technical data in travel configuration
|
|
Category
|
Item
|
Unit
|
Parameter
|
|
Dimension
|
Overall length
|
mm
|
11380
|
|
Overall height
|
mm
|
3900
|
|
Overall width
|
mm
|
2500
|
|
Wheel base
|
Axles 1 and 2
|
mm
|
4500
|
|
Axles 2 and 3
|
mm
|
1350
|
|
Tread
|
Front axle
|
mm
|
2053
|
|
Rear axle
|
mm
|
1802
|
|
Weight
|
Weight with full load
|
kg
|
23950
|
|
Axle load
|
Front axle
|
kg
|
6450
|
|
Dual rear axles
|
kg
|
17500
|
|
Travel performance
|
Max. travel speed
|
km/h
|
85
|
|
Min. turning diameter
|
m
|
≤24
|
|
Approach angle
|
°
|
16
|
|
Departure angle
|
°
|
10
|
|
Braking distance(at 30km/h)
|
m
|
≤10
|
|
Min. ground clearance
|
mm
|
204
|
|
Max. gradeability
|
%
|
≥25
|
|
Main technical data for operation
|
|
Main performance
|
Rated working height
|
m
|
32
|
|
Rated load
|
kg
|
400
|
|
Max. working radius (Full extending/semi-extending)
|
m
|
19/15
|
|
Outrigger span(longitudinal×lateral)
|
m
|
6650×5800
|
|
Elevating range
|
°
|
?3~80
|
|
Working speed
|
Boom deploying time
|
S
|
≤130
|
|
Outrigger extending time
|
S
|
≤40
|
|
Slewing speed
|
r/min
|
0~1.5
|
|
Fire-fighting performance
|
Water monitor rated flow
|
L/s
|
50
|
|
Water monitor rated pressure
|
MPa
|
≤1.0
|
|
Water monitor rated reach
|
m
|
≥65
|
|
Fire pump rated flow
|
L/s
|
50
|
|
Fire pump rated outlet pressure
|
MPa
|
1.8
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
