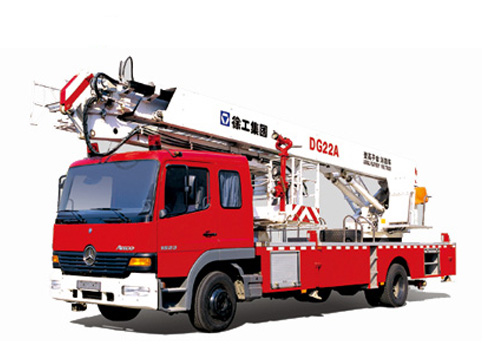

Germany Benz Atego1523 chassis; 2 telescopic booms and 1 folded boom structure featuring reasonable structure and large strength reservation coefficient; the largest load of the working platform is 300kg; electro-hydraulic proportional control technology, high efficiency in vehicle rescuing and easy operation; with 11 protecting devices, it is one of the most reliable machine in China.
DG22A Fire Truck Technical Specifications:
|
Main technical data in travel configuration
|
|
Category
|
Item
|
Unit
|
Parameter
|
|
Dimension
|
Overall length
|
mm
|
10180
|
|
Overall height
|
mm
|
3650
|
|
Overall width
|
mm
|
2500
|
|
Wheel base
|
mm
|
5360
|
|
Weight with full load
|
kg
|
14750
|
|
Axle load
|
Front axle
|
kg
|
5150
|
|
Rear axle
|
kg
|
9600
|
|
Weight
|
Max. travel speed
|
km/h
|
≥90
|
|
Min. turning diameter
|
m
|
≤19.4
|
|
Approach angle
|
°
|
≥18
|
|
Departure angle
|
°
|
≥10
|
|
Travel performance
|
Braking distance(at 30km/h)
|
m
|
≤10
|
|
Min. ground clearance
|
mm
|
170
|
|
Max. gradeability
|
%
|
≥25
|
|
Main technical data for operation
|
|
Main performance
|
Rated working height
|
m
|
22
|
|
Work platform rated load
|
kg
|
300
|
|
Max. working radius
|
m
|
14
|
|
Outrigger span(longitudinal×lateral)
|
m
|
5.5×5.5
|
|
Elevating range
|
°
|
?3~80
|
|
Working speed
|
Boom deploying time
|
S
|
≤150
|
|
Outrigger extending time
|
S
|
≤30
|
|
Slewing speed
|
r/min
|
0~1.5
|
|
Fire-fighting performance
|
Water monitor flow
|
L/s
|
40
|
|
Water monitor rated pressure
|
MPa
|
≤1.0
|
|
Water monitor reach
|
m
|
≥60
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
