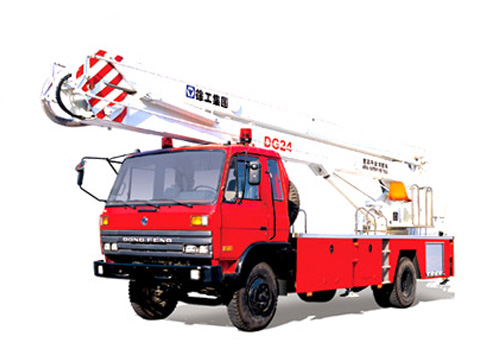

DG24 Fire Truck Technical Specifications:
|
Main technical data in travel configuration
|
|
Category
|
Item
|
Unit
|
Parameter
|
|
Dimension
|
Overall length
|
mm
|
11380
|
|
Overall height
|
mm
|
3640
|
|
Overall width
|
mm
|
2500
|
|
Wheel base
|
mm
|
4700
|
|
Tread
|
Front axle
|
mm
|
1900
|
|
Rear axle
|
mm
|
1800
|
|
Weight
|
Total vehicle curb weight
|
kg
|
11285
|
|
Axle load
|
Front axle
|
kg
|
3475
|
|
Rear axle
|
kg
|
7810
|
|
Weight with full load
|
kg
|
11510
|
|
Axle load
|
Front axle
|
kg
|
3700
|
|
Rear axle
|
kg
|
7810
|
|
Max. travel speed
|
km/h
|
≥85
|
|
Min. turning diameter
|
m
|
≤18
|
|
Approach angle
|
°
|
≥30
|
|
Departure angle
|
°
|
≥10
|
|
Travel performance
|
Braking distance(at 30km/h)
|
m
|
≤10
|
|
Min. ground clearance
|
mm
|
248
|
|
Fuel consumption of per 100km
|
L
|
≤21
|
|
Max. gradeability
|
%
|
≥27
|
|
Main technical data for operation
|
|
Main performance
|
Rated working height
|
m
|
24.5
|
|
Max. working radius
|
m
|
14.3
|
|
Platform rated load
|
kg
|
270
|
|
Outrigger span
|
m
|
4400×4200
|
|
Firefighting electrical water monitor
|
Rated flow
|
L/s
|
30
|
|
Injection pressure
|
MPa
|
≤1.0
|
|
Water monitor reach
|
m
|
≥55
|
|
Nozzle travel range
|
°
|
Up and down:-15~70
Left and right:±135
|
|
Boom elevating range
|
1st boom
|
°
|
1~80
|
|
2nd boom
|
°
|
0~75
|
|
3rd boom
|
°
|
76~180
|
|
Working speed
|
Boom deploying time
|
S
|
≤110
|
|
Outrigger extending time
|
S
|
≤30
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
