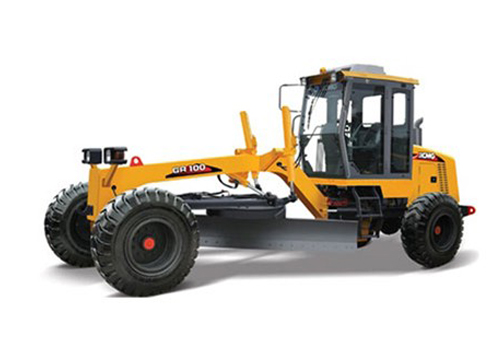

GR100 Motor Grader Technical Specifications:
|
Basic specification
|
|
Engine model
|
4BT3.9
|
|
Rated power/speed
|
75/2400kw/rpm
|
|
Dimension(LxWxH)
|
6880×2375×3150mm
|
|
Operating weight(Standard)
|
7000kg
|
|
Performance specification
|
|
Travelling speed ,forward
|
5,10,20,39km/h
|
|
Travelling speed ,reverse
|
8,25km/h
|
|
Tractive force(f=0.75)
|
41.6KN
|
|
Max. gradeability
|
20%
|
|
Tire inflation pressure
|
350KPa
|
|
Working hydraulic pressure
|
16MPa
|
|
Transmission pressure
|
1.3~1.8MPa
|
|
Operating specification
|
|
Max. steering angle of front wheels
|
±50°
|
|
Max. lean angle of front wheels
|
17°
|
|
Max. oscillation angle of front axle
|
±15°
|
|
Max. oscillation angle of balance box
|
|
|
Frame articulation angle
|
±27°
|
|
Min. turning radius using articulation
|
5.9m
|
|
Biade
|
|
Maximum lift above ground
|
300mm
|
|
Maximum depth of cutting
|
350mm
|
|
Maximum blade position angle
|
45°
|
|
Blade cutting angle
|
28°—70°
|
|
Circle reversing rotation
|
120°
|
|
Moldboard width X height
|
3048×500mm
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
