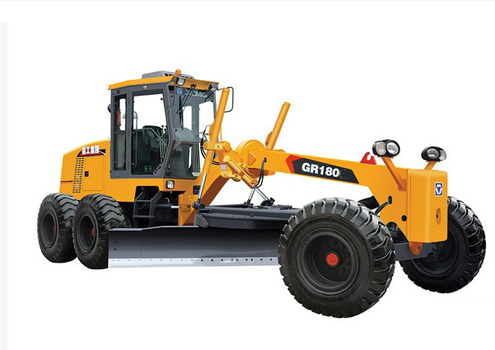

GR180 Motor grader Technical Specifications:
|
Basic specification
|
|
Engine model
|
6CTAA8.3 D6114
|
|
Rated power/speed
|
138kW/2200 140kW/2300rpm
|
|
Dimension(LxWxH)
|
8900×2625×3470mm
|
|
Operating weight(Standard)
|
15400kg
|
|
Performance specification
|
|
Travelling speed ,forward
|
5,8,11,19,23,38 km/h
|
|
Travelling speed ,reverse
|
5,11,23 km/h
|
|
Tractive force(f=0.75)
|
79KN
|
|
Max. gradeability
|
20%
|
|
Tire inflation pressure
|
260 kPa
|
|
Working hydraulic pressure
|
16 MPa
|
|
Transmission pressure
|
1.3~1.8MPa
|
|
Operating specification
|
|
Max. steering angle of front wheels
|
±50°
|
|
Max. lean angle of front wheels
|
±17°
|
|
Max. oscillation angle of front axle
|
±15°
|
|
Max. oscillation angle of balance box
|
15
|
|
Frame articulation angle
|
±27°
|
|
Min. turning radius using articulation
|
7.3m
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
