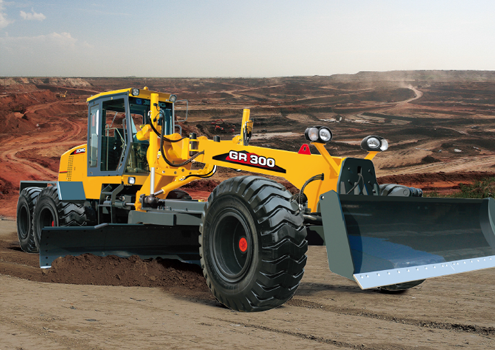

GR300 Motor grader Technical Specifications:
|
Basic specification
|
|
Engine model
|
QSL9
|
|
Rated power/speed
|
224kW/2100rpm
|
|
Dimension(LxWxH)
|
10500×3100×3550mm
|
|
Operating weight(Standard)
|
26000kg
|
|
Performance specification
|
|
Travelling speed ,forward
|
5,8,11,19,23,40 km/h
|
|
Travelling speed ,reverse
|
5,11,23 km/h
|
|
Tractive force(f=0.75)
|
140KN
|
|
Max. gradeability
|
30%
|
|
Tire inflation pressure
|
350 kPa
|
|
Working hydraulic pressure
|
16 MPa
|
|
Transmission pressure
|
1.3~1.8MPa
|
|
Operating specification
|
|
Max. steering angle of front wheels
|
±50°
|
|
Max. lean angle of front wheels
|
±17°
|
|
Max. oscillation angle of front axle
|
±15°
|
|
Max. oscillation angle of balance box
|
15
|
|
Frame articulation angle
|
±27°
|
|
Min. turning radius using articulation
|
8.0m
|
|
Biade
|
|
Maximum lift above ground
|
450mm
|
|
Maximum depth of cutting
|
500mm
|
|
Maximum blade position angle
|
90°
|
|
Blade cutting angle
|
28°—70°
|
|
Circle reversing rotation
|
360°
|
|
Moldboard width X height
|
4920×787mm
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
