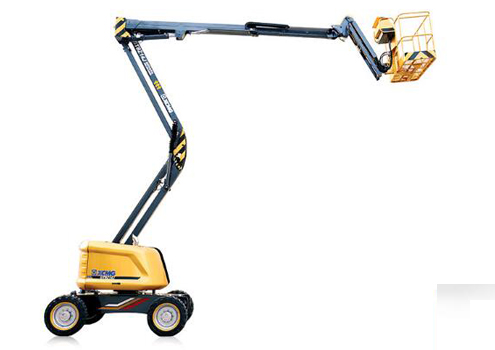

14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.
Product Highlights
1. Flexibility and efficiency
“Σ-type” double link jib has characteristics of compact structure and flexible extension, which can achieve vertical lifting and horizontal extension and has very strong obstacle climbing ability;180° rotatable platform provides bigger operation range;Narrow-type rotary table with compact structure can achieve “zero tail wagging” and improve operation efficiency.
2. Super strong site adaptability
Cross-country type chassis, four-wheel drive system, pouring-type cross-country wide tyre, full-time axle balanced system and 38kw strong power are configured so that the equipment has excellent terrain adaptability.
3. Advanced performance, safety and reliability
Full-range operation, visual and friendly control panel and easy operation; Electro-hydraulic proportional system control is accurate and efficient. Protective measures such as chassis incline protection, platform overload alarming, emergency landing, safety speed limit, flexibility start-stop technology, etc. are provided.
| Item |
Unit |
Parameters |
| a Overall Length |
mm |
6690 |
| b Overall Width |
mm |
2260 |
| c Overall Height |
mm |
2130 |
| d Wheel Base |
mm |
2100 |
| Maximum Working Height |
m |
15.75 |
| Maximum Platform Height |
m |
14.05 |
| Maximum Working Range |
m |
8.22 |
| Maximum Load Capacity |
kg |
230 |
| 1stBoom luffing Range |
° |
0~+60 |
| 2ndBoom luffing Range |
° |
-8~+75 |
| Crank Arm Luffing Range |
° |
-60~+80 |
| Rotation Angle of Rotating Platform |
° |
355 |
| Maximum Tail Wagging |
mm |
0 |
| Platform Size |
mm |
1830×760×1150 |
| Platform turning angle |
° |
180 |
| Total Weight |
kg |
6900 |
| Maximum Travel Speed |
km/h |
6.1 |
| Minimum Turning Radius |
m |
4.5 |
| Minimum Ground Clearance |
mm |
250 |
| Maximum Grade Ability |
% |
45 |
| Tire Specification |
- |
315/55D20 |
| Engine Model |
- |
Perkins |
| 404D-22 |
| Rated Power of Engine |
kW/(r/min) |
38/(3000) |
