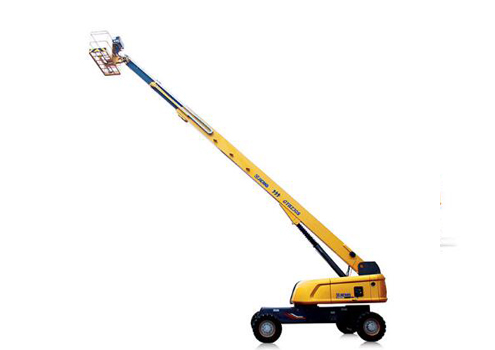

It is a straight boom aerial work platform with the widest scope of application at the elevation of 30 meters. It is featured by: the widest scope of application among the products operating under the same elevation to enhance the ability of operation; the strongest capacity of loading within the industry to satisfy the user’s demands on heavy load; and the excellent capacity of climbing drive to adapt itself to all kinds of complicated road conditions. The machine may be widely used for building operations, bridge & equipment maintenance, shipbuilding, petrochemical engineering and other related industries.
Product Highlights
1. Super-Strong capacity of climbing drive
The electronic steering and wide foam tyres both attribute to an excellent capacity of climbing drive, thus adapting itself to all kinds of complicated road conditions.
2. Strongest capacity of loading within the industry
The maximum capacity of loading, i.e. 480kg, ranks the first within the industry, thus satisfying the user’s demands on heavy load.
3. Excellent working range
The double-load operating-curve control technologies realizes a real-time monitoring over loads, thus producing a strong capacity of operation, as well as a widest working range at the same elevation.
| Item |
Unit |
Parameter |
| a Overall Length |
mm |
13380 |
| b Overall Width (shaft retracts/stretches) |
mm |
2490/3800 |
| c Overall Height |
mm |
3070 |
| d Wheel Base |
mm |
3800 |
| Maximum Working Height |
m |
32.2 |
| Maximum Platform Height |
m |
30.5 |
| Maximum Working Range |
m |
23.1 |
| Maximum Load Capacity |
kg |
480 |
| Boom Luffing Range |
° |
-11~+75 |
| Rotation Angle of Rotating Platform |
° |
360° |
| Maximum Tail Wagging(shaft retracts/stretches) |
mm |
2085/1430 |
| Platform Size |
mm |
2400×900 |
| Rotation Angle of Platform |
° |
180 |
| Total Weight |
kg |
18300 |
| Maximum Travel Speed |
km/h |
5 |
| Minimum Turning Radius(shaft retracts/stretches) |
m |
10.8/8.2(Two-turn) |
| 6.8/5.8(Four -turn) |
| Minimum Ground Clearance |
mm |
260 |
| Maximum Grade Ability |
% |
45 |
| Tire Specification |
- |
385/65D22.5 |
| Engine Model |
- |
Perkins 1104D-44T |
| Rated Power of Engine |
kW/(r/min) |
55.5/2400 |
