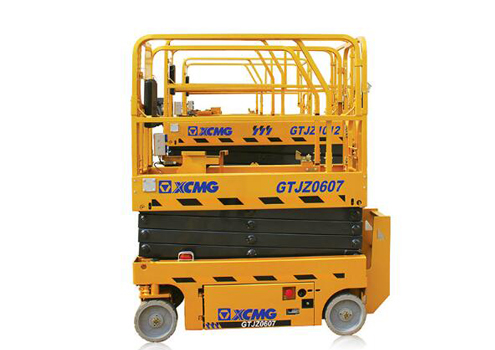

The scissors aerial work platform which is the newly developed series by XCMG can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.
Product strength
(1) Low noise and zero release
Energy-efficient electrical drive system is adopted with zero release and low noise and traceless tyre is configured so that environmental protection and convenient construction may be available even in closed environments such as office building, hospital, school etc.
(2) Meeting individual demands
Perfect safety protection, independently-designed control system and abundant matching combinations may fully meet the customized demands of customer.
(3) Compact and flexible operation
Narrow-type design makes the complete machine pass single-door channel with ease and foldable rail makes transportation displacement more convenient. Unique “zero turning radius” design may be applied in narrow space flexibly. Meanwhile, it has 25% grade ability so that the driving operation is more relaxed.
| Item |
Unit |
Parameters |
| a Overall Length |
mm |
1882 |
| b Overall Width |
mm |
760 |
| c Overall Height (Guardrail folding) |
mm |
1771 |
| d Wheel Base |
mm |
1360 |
| Maximum Working Height |
m |
7.8 |
| Maximum Platform Height |
m |
5.8 |
| Maximum Load Capacity |
kg |
230 |
| Extension Platform Load |
kg |
115 |
| Platform Size |
mm |
1655×740×1185 |
| PlatformExtension Length |
mm |
900 |
| Lifting Speed of Working Platform |
s |
16-24 |
| Falling Speed of Working Platform |
s |
20-28 |
| Total Weight |
kg |
1490 |
| Travel Speed (High Speed) |
km/h |
4 |
| Travel Speed (low Speed) |
km/h |
0.8 |
| Max. Travel Platform Height |
m |
5.8 |
| Minimum Turning Radius |
m |
0 |
| Minimum Ground Clearance (Pot Hole Protector Rises/Falls) |
mm |
60/20 |
| Maximum Grade Ability |
% |
25 |
| Tire Specification |
_ |
Traceless solid |
| 30.5cm×10.0cm |
| Battery |
V/(Ah) |
4×6(225) |
| Charger |
A |
30 |
| Warning Angle of Inclination |
° |
1.5 (Both sides) |
| ° |
3(Front or Rear) |
