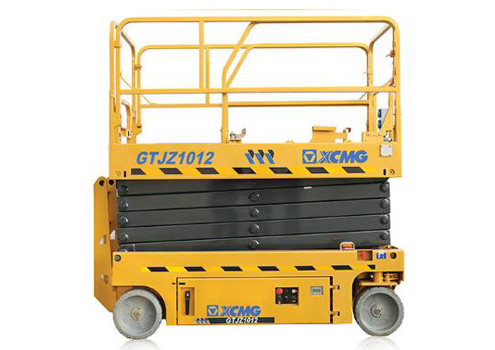

The scissors aerial work platform which is the newly developed series by XCMG can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.
Product Highlights
(1) Convenient transportation and stable operation
Scalable assistant expansion platform has bigger operation space and foldable rail makes transportation displacement more convenient. Industry-leading automatic hole protection system and tread widening design achieve that you can operate freely even at uneven ground.
(2) Environmental construction and convenient service
Pure electric drive, zero release, low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.
(3) General and modular design
A set of booms are added, achieving rapid vehicle model extension, ensuring general design of parts and components and realizing more convenient customer repair and maintenance.
| Item |
Unit |
Parameters |
| a Overall Length |
mm |
2485 |
| b Overall Width |
mm |
1190 |
| c Overall Height (Guardrail folding) |
mm |
2036 |
| d Wheel Base |
mm |
1871 |
| Maximum Working Height |
m |
13.8 |
| Maximum Platform Height |
m |
11.8 |
| Maximum Load Capacity |
kg |
320 |
| Extension Platform Load |
kg |
115 |
| Platform Size |
mm |
2276×1120×1254 |
| PlatformExtension Length |
mm |
900 |
| Lifting Speed of Working Platform |
s |
61-71 |
| Falling Speed of Working Platform |
s |
43-58 |
| Total Weight |
kg |
3150 |
| Travel Speed (High Speed) |
km/h |
3.2 |
| Travel Speed (low Speed) |
km/h |
0.8 |
| Max. Travel Platform Height |
m |
11.8 |
| Minimum Turning Radius |
m |
0 |
| Minimum Ground Clearance (Pot Hole Protector Rises/Falls) |
mm |
101/20 |
| Maximum Grade Ability |
% |
25 |
| Tire Specification |
_ |
Traceless solid |
| 38.1cm×12.7cm |
| Battery |
V/(Ah) |
4×12(300) |
| Charger |
A |
30 |
| Warning Angle of Inclination |
° |
1.5 (Both sides) |
| ° |
3(front or rear) |
