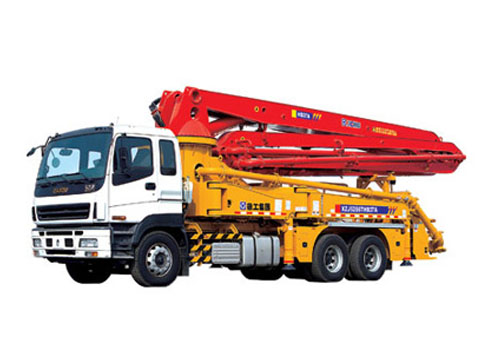

HB37A Technical Specifications:
|
No.
|
Item
|
Unit
|
Parameter
|
|
1
|
Max. speed
|
km
|
90
|
|
2
|
Min. turning diameter
|
m
|
18.4
|
|
3
|
Brake distance
|
m
|
7
|
|
4
|
Approach angle
|
°
|
31
|
|
5
|
Departure angle
|
°
|
12
|
|
6
|
Chassis model
|
|
CXZ51Q ( Japan )
|
|
7
|
Total weight
|
kg
|
28150
|
|
8
|
1st axle load
|
kg
|
6780
|
|
9
|
2nd, 3rd axle load
|
kg
|
21220
|
|
10
|
Engine model
|
|
6WF1
|
|
11
|
Max. Engine power
|
kW
|
287
|
|
12
|
Max. Engine torque
|
N.m
|
1862
|
|
13
|
Max. grade-ability
|
%
|
38
|
|
14
|
Fuel consumption limit
|
L/100km
|
34
|
|
15
|
Outline dimensions (Length´ Width ´Height)
|
mm
|
11990´2490´3900
|
Technical Data for Pumping Operation
|
No.
|
Item
|
Unit
|
Parameter
|
|
1
|
Theoretical output
|
m3/h
|
138/90
|
|
2
|
Max. delivery pressure
|
MPa
|
8.7/13
|
|
3
|
Reach height
|
m
|
37.4
|
|
4
|
Reach depth
|
m
|
23.7
|
|
5
|
Front outrigger transverse span
|
mm
|
7280
|
|
6
|
Rear outrigger transverse span
|
mm
|
6600
|
|
7
|
Outrigger longitudinal span
|
mm
|
6860
|
|
8
|
Delivery pipe diameter
|
mm
|
125
|
|
9
|
Remote control distance
|
m
|
100
|
|
10
|
Placing boom slewing range
|
°
|
370
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
