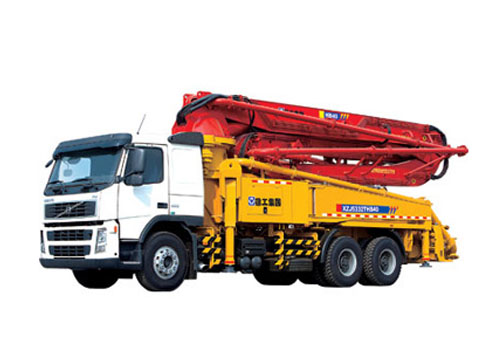

HB40 Technical Specifications:
|
Travel
|
|
Category
|
Item
|
Unit
|
Parameter
|
|
Chassis
|
Model
|
|
FM
|
|
Manufacturer
|
|
VOLVO
|
|
Max. speed
|
km/h
|
90.8
|
|
Max. gradeability
|
|
34.70%
|
|
Min. turning diameter
|
m
|
18.4
|
|
Brake distance
|
m
|
≤7
|
|
Wheelbase
|
mm
|
4900+1370
|
|
Tread (front/rear)
|
mm
|
2019/1834
|
|
Approach angle/departure angle
|
?
|
18/10
|
|
Min. clearance
|
mm
|
270
|
|
Tyre specification
|
|
12.00R20
|
|
Engine
|
Model
|
|
D13
|
|
Output power
|
kw/(r/min)
|
294/1400-1800
|
|
Max. torque
|
N.m/(r/min)
|
2000/1050-1400
|
|
Displacement
|
l
|
12.8
|
|
Emission Standard
|
|
Nation III GB?
|
|
Others
|
Dimension (Length×Width×Height)
|
mm
|
11180×2500×3990
|
|
Total vehicle weight
|
kg
|
32600
|
|
Fuel tank capacity
|
l
|
410
|
|
Fuel consumption per 100km
|
l/100km
|
40
|
|
Pumping operation
|
|
Pumping system
|
Theoretical output(high pressure/low pressure)
|
m3/h
|
70/140
|
|
Concrete pumping pressure(high pressure/low pressure)
|
Mpa
|
11.8/6.38
|
|
Theoretical pumping times(high pressure/low pressure)
|
?/min
|
15/27
|
|
Max. diameter of pumping concrete aggregate
|
|
40
|
|
Feeding height
|
|
1450
|
|
Placing boom
|
Pumping slump range
|
|
12-23
|
|
Reach height
|
|
39.8
|
|
Reach depth
|
|
27.9
|
|
Slewing radius
|
|
35.8
|
|
Slewing angle
|
|
370
|
|
1st boom stretch angle
|
|
90
|
|
2nd boom stretch angle
|
|
180
|
|
3rd boom stretch angle
|
|
180
|
|
4th boom stretch angle
|
|
240
|
|
5th boom stretch angle
|
|
250
|
|
Outrigger span
|
Overall outrigger span
|
7800
|
|
Front outrigger transverse span
|
8350
|
|
Rear outrigger transverse span
|
7200
|
|
Others
|
Dosing type
|
|
S valve
|
|
Lubricating method
|
|
Automatic lubrication
|
|
Controlling method
|
|
Manual/remote control
|
|
Water tank capacity
|
|
600
|
|
Max. pressure of water pump
|
|
2
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
