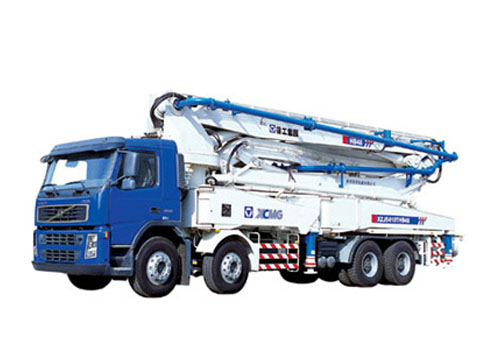

HB44 Concrete Pump Truck

HB44 Technical Specifications:

Item

Parameter

Outline dimensions (Length´ Width ´Height)mm

12310×2500×3990

Fuel type

Diesel

Engine emission standard

Euro III

Displacement/Powerml/kW

12100/279

Steering type

Steering wheel

No. of axle

4

Wheel basemm

1793+4407+1370

No. of spring leaf (front/rear)

2+3/9

Tire

12.00R20

Track (front/rear)mm

2034/1831

No. of tire (exclude spare tire)

12

Total vehicle weightkg

36500

Crew in cab

2

Approach angle/Departure angle

21°/12°

Front overhang /Rear overhangmm

1360/3380

Max. speedkm/h

94

Min. ground clearancemm

270

Max. grade-ability

38%

Fuel consumption per 100kmL/100km

40

Chassis

Model

FM12

Grade

?

Manufacturer

VOLVO

Engine

Model

D12

Manufacturer

VOLVO


& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
