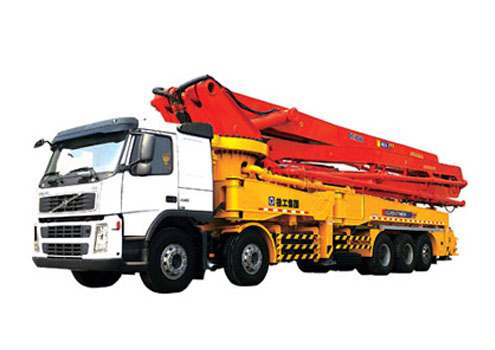

HB56 concrete pump could reach 55.7m. The optimized 5-section RZ type boom and articulated mechanism feature larger working space, more flexible controlling and longer service life. The adopted Volvo FM440 104R B five-axle chassis features comfortability, luxury, and high carrying capacity.
The pumping system adopts the large displacement center pumping system with delivery cylinder diameter of 260mm. The max. theoretical displacement is 163m3/h, smaller reversing frequency, 21 times for low pressure and 14 times for high pressure. The wearing parts feature high service life and convenient maintenance.
The concrete piston could withdraw automatically. The patented SN valve cushioning technology ensures the flexible reversing and small pumping impact. The electrical system adopts PLC control with color display screen, showing the running parameters of the equipment. The application of the engine energy saving technology and trouble-shooting technology improves the economics, reliability and safety of the concrete pump.
HB56 Technical Specifications:
|
Travel
|
|
Category
|
Item
|
Unit
|
Parameter
|
|
Chassis
|
Model
|
|
FM440
|
|
Manufacturer
|
|
VOLVO
|
|
Max. speed
|
km/h
|
90
|
|
Max. gradeability
|
|
38%
|
|
Min. turning diameter
|
m
|
27.4
|
|
Brake distance
|
m
|
≤10
|
|
Wheelbase
|
mm
|
1995+5205+1370+1450
|
|
Tread (front/rear)
|
mm
|
2028/1872
|
|
Approach angle/departure angle
|
?
|
18/11
|
|
Min. clearance
|
mm
|
270
|
|
Tyre specification
|
|
12.00R20
|
|
Engine
|
Model
|
|
D13
|
|
Output power
|
kw/(r/min)
|
324/1400~1800
|
|
Max. torque
|
N.m/(r/min)
|
2200/1050~1400
|
|
Displacement
|
l
|
12.8
|
|
Emission Standard
|
|
Nation III GB?
|
|
Others
|
Dimension (Length×Width×Height)
|
mm
|
14885×2500×3990
|
|
Total vehicle weight
|
kg
|
49750
|
|
Fuel tank capacity
|
l
|
410
|
|
Fuel consumption per 100km
|
l/100km
|
50
|
|
Pumping operation
|
|
Pumping system
|
Theoretical output(high pressure/low pressure)
|
m3/h
|
100/163
|
|
Concrete pumping pressure(high pressure/low pressure)
|
Mpa
|
13/8
|
|
Theoretical pumping times(high pressure/low pressure)
|
?/min
|
13/21
|
|
Max. diameter of pumping concrete aggregate
|
|
40
|
|
Feeding height
|
|
1530
|
|
Placing boom
|
Pumping slump range
|
|
12-23
|
|
Reach height
|
|
55.7
|
|
Reach depth
|
|
44
|
|
Slewing radius
|
|
51.7
|
|
Slewing angle
|
|
364
|
|
1st boom stretch angle
|
|
96
|
|
2nd boom stretch angle
|
|
180
|
|
3rd boom stretch angle
|
|
180
|
|
4th boom stretch angle
|
|
180
|
|
5th boom stretch angle
|
|
260
|
|
Outrigger span
|
Overall outrigger span
|
11250±50
|
|
Front outrigger transverse span
|
11400±50
|
|
Rear outrigger transverse span
|
11300±50
|
|
Others
|
Dosing type
|
|
S valve
|
|
Lubricating method
|
|
Automatic lubrication
|
|
Controlling method
|
|
Manual/remote control
|
|
Water tank capacity
|
|
700
|
|
Max. pressure of water pump
|
|
2
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
