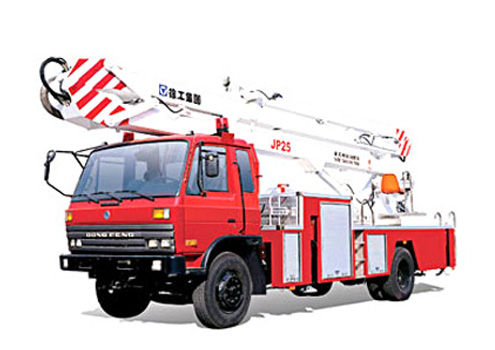

Main technical data in travel configuration
|
Category
|
Item
|
Unit
|
Parameter
|
|
Dimension
|
Overall length
|
mm
|
9700
|
|
Overall height
|
mm
|
3800
|
|
Overall width
|
mm
|
2500
|
|
Wheel base
|
mm
|
5000
|
|
Track
|
Front track
|
mm
|
1940
|
|
Rear track
|
mm
|
1860
|
|
Weight
|
|
Total vehicle curb weight
|
kg
|
13200
|
|
Wheel base
|
Front axle
|
kg
|
4400
|
|
Rear axle
|
kg
|
8800
|
|
|
Total vehicle weight
|
kg
|
13500
|
|
Wheel base
|
Front axle
|
kg
|
4750
|
|
Rear axle
|
kg
|
8750
|
|
Travel
performance
|
Max.travel speed
|
km/h
|
≥85
|
|
Min.turning diameter
|
m
|
≤18
|
|
Approach angle
|
°
|
≥25°
|
|
Departure angle
|
°
|
≥10°
|
|
Braking distance(at 30km/h)
|
m
|
≤10
|
|
Min.ground clearance
|
mm
|
248
|
|
Fuel consumption of per 100km
|
L
|
≤23
|
|
Max.gradeability
|
%
|
≥28%
|
Main technical data for operation
|
Category
|
Item
|
Unit
|
Parameter
|
|
Main
performance
|
Rated working height
|
m
|
25
|
|
Max.working radius
|
m
|
15
|
|
Outrigger span(longitudinal×lateral)
|
m
|
5.2×4.5
|
|
Fire pump rated reach
|
L/s
|
32~40
|
|
Fire pump rated outlet pressure
|
MPa
|
1.0~1.3
|
|
Water monitor
|
Rated flow
|
L/s
|
32
|
|
Water reach
|
m
|
≥50
|
|
Foam reach
|
m
|
≥45
|
|
Working speed
|
Boom deploying time
|
S
|
≤140
|
|
Outrigger extending time
|
S
|
≤40
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
