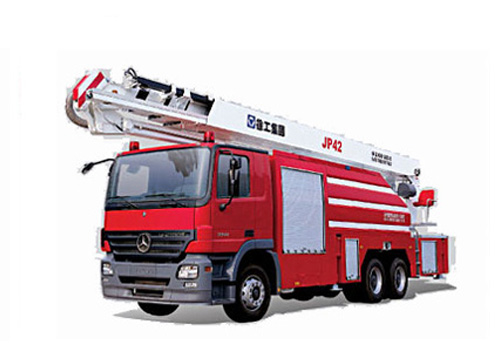

Germany Benz Actros 3344 chassis, 320kw; 4 telescopic booms and 1 folded boom structure; the large capacity fire-fighting liquid container of 5-ton water and 3-ton foam, American Darley PSP1500 water pump and imported electrical monitor; electro-hydraulic proportional control technology, high efficiency in vehicle rescuing and easy operation; with 40m wire controlling and fire monitoring system, it is advanced in the liquid capacity and fire-fighting capacity.
JP42 Fire Truck Technical Specifications:
|
Main technical data in travel configuration
|
|
Category
|
Item
|
Unit
|
Parameter
|
|
Dimension
|
Overall length
|
mm
|
12170
|
|
Overall height
|
mm
|
3940
|
|
Overall width
|
mm
|
2500
|
|
Wheel base
|
Axles 1 and 2
|
mm
|
4500
|
|
Axles 2 and 3
|
mm
|
1350
|
|
Tread
|
Front axle
|
mm
|
2035
|
|
Rear axle
|
mm
|
1804
|
|
Weight
|
Extinguishant rated load weight
|
Water
|
kg
|
4900/3000
|
|
Foam
|
kg
|
4900/3000
|
|
Total vehicle curb weight
|
23950
|
Front axle
|
kg
|
5750
|
|
Dual rear axles
|
kg
|
18200
|
|
Weight with full load
|
32000
|
Front axle
|
kg
|
7000
|
|
Dual rear axles
|
kg
|
25000
|
|
Travel performance
|
Max. travel speed
|
km/h
|
≥90
|
|
Min. turning diameter
|
m
|
≤20
|
|
Approach angle
|
°
|
16
|
|
Departure angle
|
°
|
9
|
|
Braking distance(at 30km/h)
|
m
|
≤10
|
|
Min. ground clearance
|
mm
|
290
|
|
Max. gradeability
|
%
|
≥25%
|
|
Main technical data for operation
|
|
Main performance
|
Rated working height
|
m
|
42
|
|
Max. working radius
|
m
|
19
|
|
Outrigger span(longitudinal×lateral)
|
m
|
6.0×5.4
|
|
Elevating range
|
°
|
?3~80
|
|
Working speed
|
Boom deploying time
|
S
|
≤110
|
|
Outrigger extending time
|
S
|
≤30
|
|
Slewing speed
|
r/min
|
0~2
|
|
Fire-fighting performance
|
Fire pump rated flow
|
L/s
|
60
|
|
Fire pump rated pressure
|
MPa
|
1.7
|
|
Water monitor
|
Water monitor rated reach
|
m
|
≥80
|
|
Water monitor rated flow
|
L/s
|
60
|
|
Water monitor rated pressure
|
MPa
|
≤0.8
|
|
Foam monitor rated reach
|
m
|
≥60
|
|
Foam monitor rated flow
|
L/s
|
48
|
|
Foam monitor rated pressure
|
MPa
|
≤0.9
|
|
Nozzle travel range
|
Up and down:-135°~0° Left and right:±107°
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
