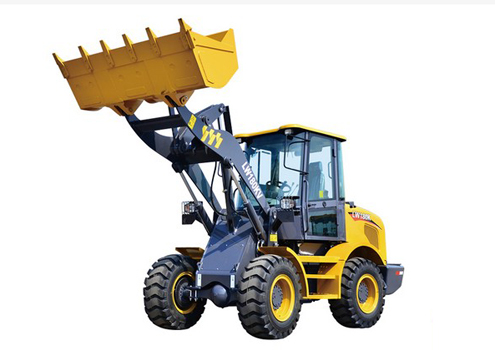

LW180 high dump wheel loader is XCMG’s new small wheel loader model, it is widely used in small amount earth moving work.
Its dump height reaches 3m, the biggest dump height can be 3.5m.
Main specifications:
Description
|
Specifications
|
Unit
|
Rated Load
|
1.8
|
t
|
Dumping clearance (Standard/Optional)
|
3000/3200/3500
|
mm
|
Dumping reach
|
1050
|
mm
|
Raising Time
|
<6
|
s
|
Total cycling time
|
?10
|
s
|
Wheel base
|
2150
|
mm
|
Tread
|
1440
|
mm
|
Traveling speed
|
|
|
1st Gear (F/R)
|
6.5
|
km/h
|
2nd Gear (F/R)
|
24
|
km/h
|
Engine
|
YTO
|
|
Model
|
LR4A5-24
|
|
Rated power
|
50/58
|
kW
|
Rated speed
|
2400
|
r/min
|
Overall dimensions (L*W*H)
|
5650*2000*2850
|
mm
|
Operating weight
|
5.5
|
t
|
Tires
|
16/70-20
|
|
LW180K is with Euro 2 standard engine, the model with Euro3 standard engine is LW180KV.
Please contact us if you want to know more about XCMG 1.8t wheel loader model LW180K.
