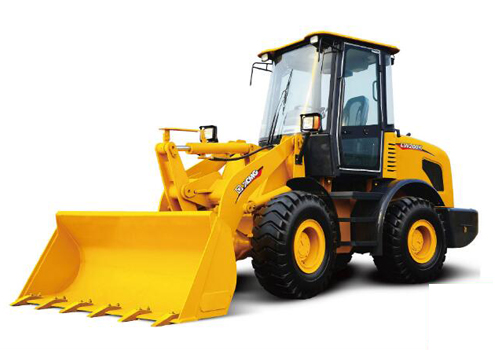

Wheel loader LW200KN Technical Specifications:
| Description |
Specification |
Unit |
| Model |
LW200KN |
|
| Rated operating load |
2000 |
kg |
| Bucket capacity |
0.9-1.1 |
m3 |
| Machine weight |
6500±200 |
kg |
| Dump clearance at maximum lift |
2530-2700 |
mm |
| Reach at maximum lift |
860-980 |
mm |
| Wheel base |
2300 |
mm |
| Tread |
1550 |
mm |
| Max.breakout force |
≥60 |
kN |
| Hydraulic cycle time-raise |
≤5 |
s |
| Total hydraulic cycle time |
≤8.5 |
s |
| Min. turning radius over tyres |
4470 |
mm |
| Articulation angle |
35 |
° |
| Gradeability |
28 |
° |
| Tyre size |
16/70-20 |
|
| Overall machine dimension LxWxH |
6400x1980x2950 |
mm |
| Model |
LR4B3ZU24/0662 |
|
| Rated Power/Speed |
66.2/2400 |
kW/rpm |
| Travel Speed |
I-gear(F/R) |
0-9/0-9 |
km/h |
| II-gear(F/R) |
0-26/0-26 |
km/h |
