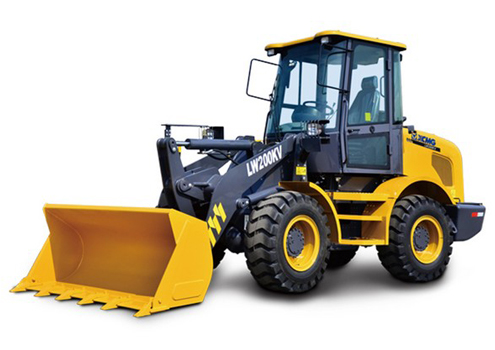

Wheel loader LW200K Technical Specifications:
|
Description
|
Specification
|
Unit
|
|
Rated operating load
|
2000
|
Kg
|
|
Bucket capacity
|
0.9-1.1
|
|
|
Machine weight
|
6300±200
|
Kg
|
|
Dump clearance at maximum lift
|
2530-2700
|
mm
|
|
Reach at maximum lift
|
860-980
|
mm
|
|
Wheel base
|
2300
|
mm
|
|
Tread
|
1550
|
mm
|
|
Max.breakout force
|
≥60
|
KN
|
|
Hydraulic cycle time-raise
|
≤5
|
s
|
|
Total hydraulic cycle time
|
≤8.5
|
s
|
|
Min.turning radius over tyres
|
4470
|
mm
|
|
Articulation angle
|
35
|
°
|
|
Gradeability
|
28
|
°
|
|
Tyre size
|
16/70-20
|
|
|
Overall machine dimension L*M*H
|
6045*2060*2950
|
mm
|
|
Model
|
YC4A90-T21
|
|
|
Rated Power/Speed
|
66/2400
|
Kw/rpm
|
|
Travel Speed(I-gear F/R)
|
0-9/0-9
|
km/h
|
|
Travel Speed(II-gear F/R)
|
0-26/0-26
|
km/h
|
