High efficiency and reliability
Model Characteristics
It features high efficiency, energy-saving, and strong power.
The three-element torque converter and the fixed shaft power shift transmission feature
high maturity and reliability.
The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
The bucket is made of high strength material to realize high wear and impact resistance.
The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions.
The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.
Convenient Maintenances
The framework structure engine hood and the uplift large side doors boast large opening angle and make the checking, repair, and maintenance easier for the engine and radiator.
The central fuse case centrally indicates the working status of electric system and eases the maintenances.
The independent chamber design for oil return line of hydraulic oil tank guarantees the convenient maintenances.
Variety attached tools meeting requirements of different working conditions
Clamp: For grab and transport of various woods and tubing.
Bale grabber: It’s used for the grabbing and handling of various light materials in farms, biological power plants, and paper mills.

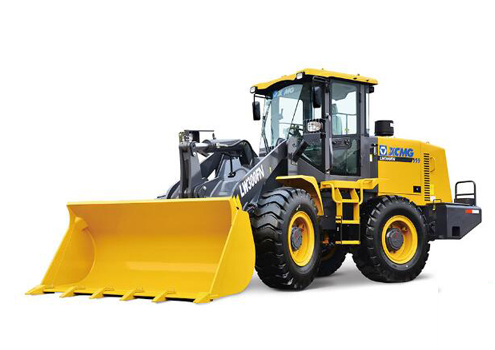

Wheel loader LW300FN Technical Specifications:
| Item |
Specification |
Unit |
| Rated operating load |
3000 |
kg |
| Bucket capacity |
1.5~2.5 |
m³ |
| Machine weight |
10600±200 |
kg |
| Dump clearance at maximum lift |
2770~3260 |
mm |
| Reach at maximum lift |
1010~1210 |
mm |
| Wheel base |
2600 |
mm |
| Tread |
1850 |
mm |
| Height of hinge at maximum lift height |
3830 |
mm |
| Working height(fully lifted) |
4870 |
mm |
| Max.breakout force |
130 |
kN |
| Max.horse power |
95 |
kN |
| Hydraulic cycle time-raise |
5.5 |
s |
| Total hydraulic cycle time |
10 |
s |
| Min. turning radius over tyres |
5165 |
mm |
| Articulation angle |
35±1 |
° |
| Gradeability |
28 |
° |
| Tyre size |
17.5-25-12PR |
|
| Overall machine dimension L×W×H |
7050×2482×3118 |
|
| Model |
WP6G125E22 |
|
| Emission standards |
Emission 2 |
|
| Rated Power/Speed |
92/2300 |
kW/rpm |
| Fuel Tank |
170 |
L |
| Hydraulic Tank |
170 |
L |
| |
I-gear(F/R) |
8?10? |
km/h |
| |
II-gear(F/R) |
13/30 |
km/h |
| Travel speed |
III-gear(F) |
24/- |
km/h |
| |
IV-gear(F) |
40/- |
km/h |
| Structure and specification are subject to change without notice.In case there is any difference between the description of the machine and the substantial machine,the substantial machine should govern. |
