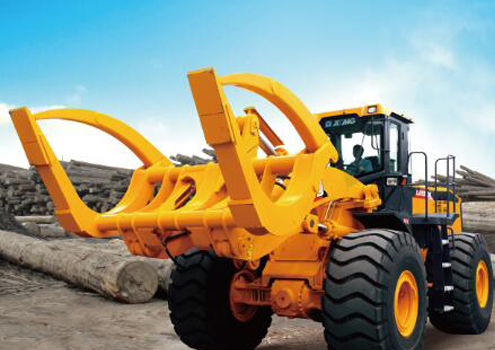

XCMG the clamp loader is one special equipment mainly for handling of timbers and is applicaible for handling and stacking of large logs at the ports and forest regions as well as the handling and laying of oil pipelines and drill pipes in the oilfields.
Extensive adaptability
XCMG clamp loader can be equipped with clamp working devices in different types, including V-shaped type, two-way clamping type, and intemal staggered type, as well as pipe grabber to meet more working needs.
The 1.5-10ton whole series products can be equipped with clamps to meet the needs of different users.
| Item |
Specification |
Unit |
| Rated operating load |
3000 |
kg |
| Machine weight |
10600±200 |
kg |
| Dump clearance at maximum lift |
2770~3260 |
mm |
| Reach at maximum lift |
1010~1210 |
mm |
| Wheel base |
2600 |
mm |
| Tread |
1850 |
mm |
| Height of hinge at maximum lift height |
3830 |
mm |
| Working height(fully lifted) |
4870 |
mm |
| Max.breakout force |
130 |
kN |
| Max.horse power |
95 |
kN |
| Hydraulic cycle time-raise |
5.5 |
s |
| Total hydraulic cycle time |
10 |
s |
| Min. turning radius over tyres |
5165 |
mm |
| Articulation angle |
35±1 |
° |
| Gradeability |
28 |
° |
| Tyre size |
17.5-25-12PR |
| Overall machine dimension L×W×H |
7050×2482×3118 |
| Model |
WP6G125E22 |
| Emission standards |
Emission 2 |
| Rated Power/Speed |
92/2300 |
kW/rpm |
| Fuel Tank |
170 |
L |
| Hydraulic Tank |
170 |
L |
| I-gear(F/R) |
8?10? |
km/h |
| II-gear(F/R) |
13/30 |
km/h |
| Travel speed |
III-gear(F) |
24/- |
km/h |
| IV-gear(F) |
40/- |
km/h |
