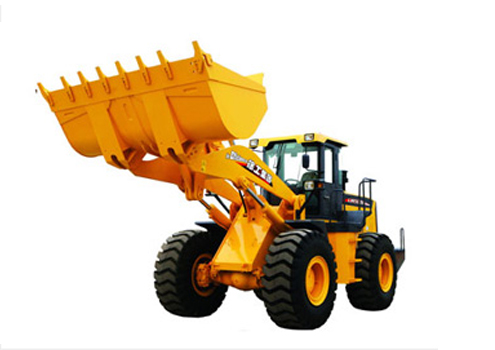

LW500KL Wheel Loader Technical Specifications:
|
Item
|
LW500KLParameter
|
Unit
|
|
Rated load
|
5000
|
kg
|
|
Tipping load
|
110
|
kN
|
|
Bucket capacity
|
3.0
|
m
|
|
Dumping height
|
3090
|
mm
|
|
Dumping distance
|
1130
|
mm
|
|
Lifting height
|
5262
|
mm
|
|
Bucket width
|
3000
|
mm
|
|
Max.drawing force
|
170
|
kN
|
|
Max. traction
|
175
|
kN
|
|
Articulation angle
|
±38
|
°
|
|
Dimension (Length × Width × Height )
|
8185×3000×3465
|
mm
|
|
Operating weight
|
17.4
|
t
|
|
Boom lifting time
|
≤6
|
s
|
|
Total time of three devices
|
≤11
|
s
|
|
Wheelbase
|
3300
|
mm
|
|
Tread
|
2250
|
mm
|
|
Min. turning radius(tyre center)
|
5925
|
mm
|
|
Min. turning radius (bucket outside)
|
6910
|
mm
|
|
Rated power/rotary speed
|
162/2200
|
kW/r/min
|
|
Engine model
|
WD10G220E23
|
|
|
Gradeability
|
30
|
°
|
|
Speed
|
I Gear (Forward/Backward)
|
11/13
|
km/h
|
|
II Gear (Forward)
|
36
|
km/h
|
|
Tyre specification
|
23.5-25-16PR
|
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
