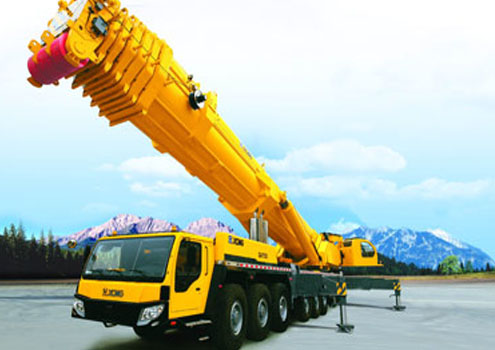

QAY160 Technical Specifications:
|
Classificatory
|
Item
|
Unit
|
Parameter
|
|
Dimension
|
Overall length
|
mm
|
15900
|
|
Overall width
|
mm
|
3000
|
|
Overall height
|
mm
|
4000
|
|
Wheel base
|
Axle 1, Axle 2
|
mm
|
2750
|
|
Axle 2,Axle 3,Axle 4,Axle 5, Axle 6
|
mm
|
1650
|
|
Axle 3, axle 4
|
mm
|
2000
|
|
Track
|
mm
|
2590
|
|
Mass
|
Total mass in travel state
|
kg
|
70900
|
|
Axle load
|
Axle 1, Axle 2
|
kg
|
11635
|
|
Axle 3, Axle 4
|
kg
|
11815
|
|
Axle 5, Axle 6
|
kg
|
12000
|
|
Power
|
Crane superstructure
engine
|
Rated power
|
kW/(r/min)
|
162/2100
|
|
Rated torque
|
N.m/(r/min)
|
854/1400
|
|
Rated speed
|
r/min
|
2100
|
|
Crane carrier engine
|
Rated power
|
kW/(r/min)
|
380/1800
|
|
Rated torque
|
N.m/(r/min)
|
2400/1200
|
|
Rated speed
|
r/min
|
2000
|
|
Travel performance
|
Travel speed
|
Max. travel speed
|
km/h
|
71
|
|
Min. stable travel speed
|
km/h
|
2.1
|
|
Min. turning diameter
|
m
|
24
|
|
Min. ground clearance
|
mm
|
278
|
|
Approach angle
|
°
|
25
|
|
Departure angle
|
°
|
20
|
|
Braking distance (at 30km/h with full load)
|
m
|
≤ 10
|
|
Max. grade-ability
|
%
|
48
|
|
Fuel consumption for 100km
|
l
|
80
|
Technical Data for Lifting Operation
|
Classificatory
|
Item
|
Unit
|
Parameter
|
|
Main
performance
|
Max. total rated lifting capacity
|
t
|
160
|
|
Min. rated working radius
|
m
|
3
|
|
Turning radius at turntable tail
|
mm
|
4850
|
|
Max. load moment
|
Base boom
|
kN.m
|
5282
|
|
Fully extended boom
|
kN.m
|
2140
|
|
Outrigger span
|
Longitudinal
|
m
|
9.625
|
|
Lateral
|
m
|
8.7(6.5)
|
|
Lifting height
|
Base boom
|
m
|
14.3
|
|
Fully extended boom
|
m
|
56.3
|
|
Fully extended boom + Jib
|
m
|
79
|
|
Boom length
|
Base boom
|
m
|
13.6
|
|
Fully extended boom
|
m
|
60
|
|
Fully extended boom + Jib
|
m
|
80
|
|
Jib offset
|
°
|
0?15?30
|
|
Working
speed
|
Boom elevating time
|
Boom raising
|
s
|
90
|
|
Boom telescoping time
|
Boom full extension
|
s
|
600
|
|
Boom full retraction
|
s
|
600
|
|
Max. swing speed
|
r/min
|
2
|
|
Hoist speed (single rope at 4th layer)
|
Main winch
|
No load
|
m/min
|
120
|
|
Aux. winch
|
No load
|
m/min
|
110
|
|
Crane exterior noise
|
db(A)
|
≤118
|
|
At seated position
|
db(A)
|
≤90
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
