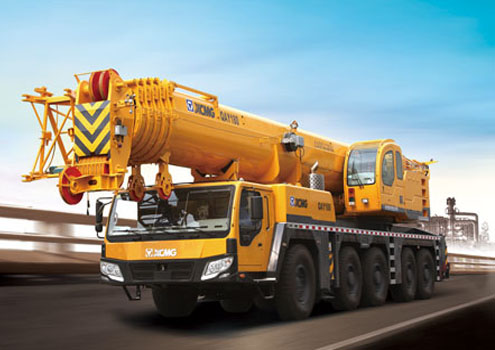

QAY180 All Terraln Crane

QAY180 Technical Specifications:

Dimension

Unit

QAY180

Overall length

mm

15770

Overall width

mm


Overall height

mm

4000

Weight



Overall weight in transport

kg

60000

Front axle load

kg


Rear axle load

kg


Power



Engine model


TAD720VE OM460LA.E3A/1

Engine rated power

kW/(r/min)

162/2100 360/1800

Engine rated torque

N.m/(r/min)

2200/1100

Travel



Max. travel speed

km/h

80

Min. turning diameter

m

20

Min. ground clearance

mm


Approach angle

°

16

Departure angle

°

13

Max. grade ability

%

50

Fuel consumption for 100km

L


Main performance



Max. rated total lifting capacity

t

180

Min. rated working radius

mm


Turning radius at turntable tail

m


Max. lifting torque

kN.m

5420

Base boom

m


Fully extended boom

m

62

Fully extended boom+ jib

m


Longitudinal outrigger span

m

8.3

Lateral outrigger span

m

8.9

Working speed



Boom luffing time

s


Boom full extension time

s


Max. swing speed

r/min


Max. speed of main winch (single rope) (no load)

m/min


Max. speed of aux. winch (single rope) (no load)

m/min



& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
