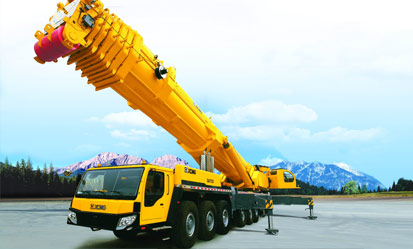

QAY200 Technical Specifications:
|
No.
|
Item
|
Unit
|
Parameter
|
|
1
|
Total mass in travel state
|
kg
|
72000
|
|
2
|
Overall length for travel
|
mm
|
16200
|
|
3
|
Overall width for travel
|
mm
|
≤3000
|
|
4
|
Overall height for travel
|
mm
|
≤4000
|
|
5
|
Chassis length
|
mm
|
14240
|
|
6
|
Max. travel speed
|
km/h
|
71
|
|
7
|
Min. stable travel speed
|
km/h
|
2
|
|
8
|
Drive type
|
|
12×6
|
|
9
|
Steering type
|
|
12×10
|
|
10
|
Approach angle
|
°
|
≥25
|
|
11
|
Departure angle
|
°
|
≥17.8 (24)
|
|
12
|
Max. grade-ability
|
%
|
≥55
|
|
13
|
Carrier engine rated output
|
kw/rpm
|
380/1800
|
|
14
|
Superstructure engine rated output
|
kw/rpm
|
162/2100
|
|
15
|
Outrigger type
|
|
Double H
|
|
16
|
Outrigger span(longitudinal×lateral )
|
mm
|
9625×8700
|
|
17
|
Min. turning diameter
|
mm
|
≤23000
|
|
18
|
Max. rated lifting capacity
|
kg
|
200000
|
|
19
|
Jib max. lifting capacity
|
kg
|
12000
|
|
20
|
Min. rated working radius
|
m
|
3
|
|
21
|
Max. load moment
|
kN .m
|
6350(9m×72t)
|
|
22
|
Boom elevation
|
°
|
0~82
|
|
23
|
Boom length
|
m
|
13.8
|
|
24
|
Fully extended boom length
|
m
|
61
|
|
25
|
Base boom lifting height
|
m
|
14.5
|
|
26
|
Fully extended boom lifting height
|
m
|
59.5
|
|
27
|
Jib length
|
m
|
11.55? 20
|
|
28
|
Swing speed
|
r/min
|
0~2
|
|
29
|
Single rope hoist speed
|
m/min
|
0~120
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
