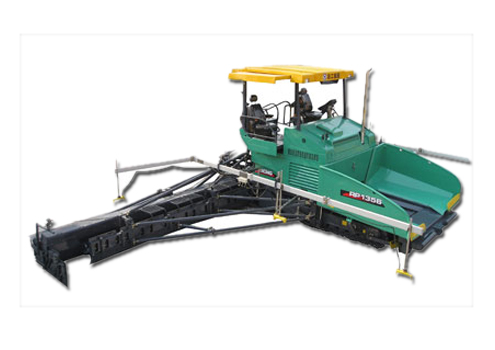

RP1356 intelligent asphalt concrete paver is developed by XCMG, featuring multiple international advanced technologies such as intelligent integrated control, group intelligent combination operation, remote monitoring and precise and efficient paving control. The machine leads the development trend in high technology performance, high reliability and high adaption. It is integrated with the advanced technologies of mechanical, electrical, hydraulic, information and communication. The product provides the best solution for the construction enterprises intending to improve the paving quality and operation efficiency, save the original material and energy consumption, and push the group intelligent combined operation mode.
RP1356 Paver Technical Specifications:
|
Items
|
Unit
|
Parameters
|
|
DV25Q-I
|
E600DV
|
|
Paving width
|
m
|
2.5 ~ 12 (Option: 14m)
|
3 ~ 9
|
|
Max. paving thickness
|
mm
|
350
|
350
|
|
Paving speed
|
m/min
|
0 ~ 18
|
0 ~ 18
|
|
Travel speed
|
km/h
|
0 ~3.6
|
0 ~ 3.6
|
|
Hopper capacity
|
t
|
14
|
14
|
|
Centre crown ratio
|
%
|
-1 ~ 4
|
-1 ~ 3
|
|
Double vibrator speed
|
r/min
|
0 ~ 1470
|
0 ~ 1470
|
|
Vibration frequency
|
Hz
|
0 ~ 42
|
0 ~ 50
|
|
Engine
|
|
TCD2013L062V Deutz
|
TCD2013L062V Deutz
|
|
Rated power/speed
|
kW
|
182
|
182
|
|
Compactness
|
%
|
≥90
|
≥90
|
|
Evenness
|
mm/3m
|
≤2
|
≤2
|
|
Theoretical productivity
|
t/h
|
800
|
700
|
|
Dimension
|
mm
|
6402×2656×3880
|
6980×3000×3880
|
|
Machine weight
|
t
|
22.2 ~ 31.2
|
24 ~ 26.5
|
|
Paver
|
RP1356
|
|
Screed Model
|
DV25Q-I
|
E600DV
|
|
Type
|
/
|
Double vibrator, eccentric vibration, gas heating
|
Double vibrator, eccentric vibration,electrical heating
|
|
Extension type
|
/
|
Mechanical assembly
|
Hydraulic extension
|
|
Width
|
m
|
2.5 ~ 12 (Option: 14m)
|
3 ~ 9
|
|
Vibrating speed
|
r/min
|
0 ~ 1470
|
0 ~ 1470
|
|
Main amplitude of vibrator
|
mm
|
3?5?7?9
|
5
|
|
Auxiliary amplitude of vibrator
|
mm
|
0?3?6?9?12
|
0?5?10
|
|
Vibration frequency
|
Hz
|
0~42
|
0~50
|
|
Extra-long screed
|
mm
|
1500×4?1000×2?500×2?250×2
|
750×4
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
