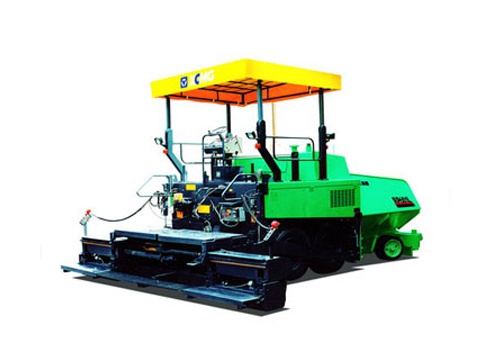

RP601L/RP701L is a tyre type paver featuring good maneuverability, high speed and large traction force. It can meet different paving requirements, and the paving width can be stepless adjusted from 2.5m to 7.0m. It is mainly used for the maintenance of municipal roads, parking lots, highways of high grade and road paving operations. It can be used to pave multiple kinds of materials, especially the asphalt concrete materials, and it can be flexibly used in small, medium or large paving operations. And it also features satisfactory levelness and compactness.
RP601L/RP701L Paver Technical Specifications:
|
Items
|
Unit
|
Parameters
|
|
Model
|
\
|
RP601L/RP701L
|
|
Basic paving width
|
m
|
2.5
|
|
Max. paving width
|
m
|
6.0/7.0
|
|
Max. paving thickness
|
mm
|
300
|
|
Paving speed
|
m/min
|
0~18
|
|
Travel speed
|
km/h
|
0~18
|
|
Theoretical Productivity
|
t/h
|
400
|
|
Hopper Capacity
|
t
|
13
|
|
Gradeability
|
%
|
20
|
|
Pavement evenness
|
mm/3m
|
3
|
|
Transverse levelling accuracy
|
%
|
±0.03
|
|
Centre crown ratio
|
%
|
0~+3
|
|
Engine model
|
|
D4114ZG2B
|
|
Engine power
|
kw
|
100
|
|
Engine speed
|
r/min
|
2400
|
|
Fuel tank capacity
|
L
|
170
|
|
Machine weight
|
t
|
15.3~19
|
|
Dimension
|
mm
|
6096X2580X3832
|
|
Auger speed
|
r/min
|
0~82
|
|
Conveyor speed
|
m/min
|
0~36
|
|
Vibrator speed
|
r/min
|
0~1470
|
|
Vibrator amplitude
|
mm
|
4
|
|
Screed heating
|
|
Electrical heating
|
|
Auger and conveyor control
|
|
Automatic Control by Ultrasonic Sensors
|
|
Automatic levelling control
|
|
Simulation control
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
