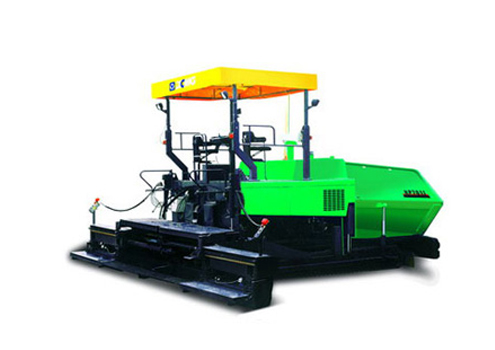

RP601J/R701J asphalt concrete paver has stable and reliable performance and higher performance/price ratio, applicable to the paving of various kinds of stabilized foundation materials and asphalt mixing materials such as stabilized soil and lime-flyash soil, which achieves multiple applications in the construction work for various grades of highways, city roads, parking lots, and squares. The machine features large traction force, strong drive force, compact structure, and convenient operation; it adopts advanced hydraulic telescopic single vibrator, gas heated screed, and the automatic leveling devices (2 longitudinal and 1 horizontal), which ensures higher flatness and compactness of the road surface. The imported high performance wear resistant material and imported hydraulic, electric, and drive parts are commonly used, the manufacturing quality and reliability of the machine has achieved advanced level among similar products, which ensures long life. The unique environmental gas heating system and central lubricating system make more convenient maintenance. Besides, the machine can also be customized with different screed according to customer needs.
RP601J/R701J Paver Technical Specifications:
|
Items
|
Unit
|
Parameters
|
|
Model
|
\
|
RP601J/R701J
|
|
Basic paving width
|
m
|
2.5
|
|
Max. paving width
|
m
|
6/7
|
|
Max. paving thickness
|
mm
|
300
|
|
Paving speed
|
m/min
|
2.0~5.98
|
|
Travel speed
|
km/h
|
1.52~4.55
|
|
Theoretical Productivity
|
t/h
|
400
|
|
Hopper Capacity
|
t
|
13
|
|
Gradeability
|
%
|
20
|
|
Pavement evenness
|
mm/3m
|
3(Asphalt)/5(Stabilized soil)
|
|
Transverse levelling accuracy
|
%
|
0.02
|
|
Engine model
|
/
|
YC6108G
|
|
Engine Parameters
|
kW/rpm
|
92/2300
|
|
Fuel tank capacity
|
L
|
160
|
|
Machine weight
|
t
|
19.3
|
|
Dimension
|
mm
|
6636×2580(3000)×3680
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
