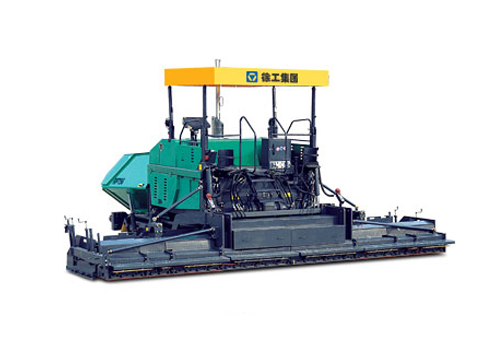

RP756 is a kind of new generation multifunctional paver. It is completely upgraded with new technology, featuring excellent performance, simple operation, and superior performance/price ratio. With the max. paving width of 7.5m, it is the optimal equipment for paving various kinds of materials for the construction of highways. The conveying system and material distribution system have extra large capacity and they are independently driven (from left/right), which can meet different construction requirements. In addition, it is more to operate and it can achieve optimal paving effect under the most tough work environment.
RP756 Paver Technical Specifications:
|
Items
|
Unit
|
Parameters
|
|
Basic paving width
|
m
|
3
|
|
Max. paving width
|
m
|
7.5
|
|
Max. paving thickness
|
mm
|
350
|
|
Paving speed
|
m/min
|
0~18
|
|
Travel speed
|
km/h
|
0~3.0
|
|
Theoretical Productivity
|
t/h
|
600
|
|
Hopper Capacity
|
t
|
14
|
|
Gradeability
|
%
|
20
|
|
Pavement evenness
|
mm/3m
|
3
|
|
Transverse levelling accuracy
|
%
|
±0.03
|
|
Centre crown ratio
|
%
|
-1~3
|
|
Engine model
|
|
D6114ZG1B
|
|
Engine power
|
kw
|
140
|
|
Engine speed
|
r/min
|
2300
|
|
Fuel tank capacity
|
L
|
270
|
|
Machine weight
|
t
|
19.9~24.6
|
|
Dimension
|
mm
|
6700×3000×3850
|
|
Vibration frequency (optional)
|
Hz
|
0~50
|
|
Screed heating
|
|
Gas heating
|
|
Auger and conveyor control
|
|
Automatic Control by Ultrasonic Sensors
|
|
Automatic levelling control
|
|
Simulation control
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
