1. The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
2. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
3. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4. The single control lever can control all blade actions;
5. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
6. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9. Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.

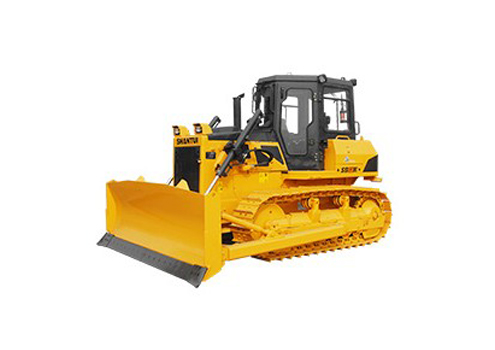

SD13 Bulldozer Technical Specifications:
|
ITEM
|
UNIT
|
SD13
|
|
L×W×H (Ripper not included)
|
mm
|
4492×3185×2950
|
|
Operating weight (Ripper not included)
|
t
|
13.7
|
|
Engine
|
-
|
Shangchai SC8D143G2B1
|
|
Rated power
|
kW/rpm
|
95.5/1900
|
|
Gradeability
|
°
|
30
|
|
Blade type
|
-
|
Straight tilt blade Angle blade
|
|
Blade width
|
mm
|
Straight tilt blade 3185×1090 Angle blade 3475×915
|
|
Dozing capacity
|
m3
|
Straight tilt blade 3.7 Angle blade 3.4
|
|
Ma× drop below ground of blade
|
mm
|
590
|
|
Lift height of blade
|
mm
|
930
|
|
Ripper type
|
-
|
Three-shank ripper
|
|
Ripping depth of ripper
|
mm
|
467
|
|
Lifting height of ripper
|
mm
|
559
|
|
Number of carriers (each side)
|
-
|
2
|
|
Number of track rollers (each side)
|
-
|
6
|
|
Number of track shoes (each side)
|
-
|
38
|
|
Width of track shoe
|
mm
|
460
|
|
Track gauge
|
mm
|
1880
|
|
Ground length and ground pressure
|
mm/MPa
|
2365-0.063
|
|
Pitch
|
mm
|
190
|
|
Forward speed
|
km/h
|
0-3.2
|
|
0-5.9
|
|
0-9.8
|
|
Reverse speed
|
km/h
|
0-3.9
|
|
0-7.1
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
