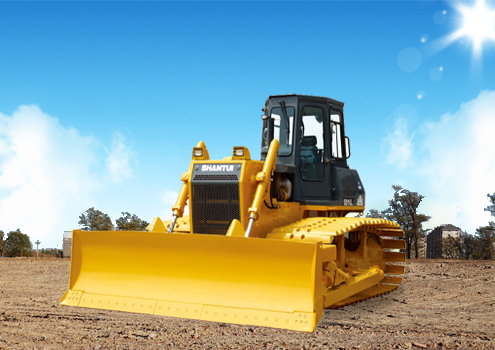

SD16 Bulldozer Technical Specifications:
|
ITEM
|
UNIT
|
SD16
|
|
L×W×H (Ripper not included)
|
mm
|
5140×3388×3032
|
|
Operating weight (Ripper not included)
|
t
|
17
|
|
Engine
|
-
|
Shangchai SC11CB184G2B1/ Weichai WD10G178E25
|
|
Rated power
|
kW/rpm
|
120/1850
|
|
Gradeability
|
°
|
30
|
|
Blade type
|
-
|
Straight tilt blade U blade Angle blade
|
|
Blade width
|
mm
|
Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040
|
|
Dozing capacity
|
m3
|
Straight tilt blade 4.5 U blade 5 Angle blade 4.3
|
|
Ma× drop below ground of blade
|
mm
|
540
|
|
Lift height of blade
|
mm
|
1095
|
|
Ripper type
|
-
|
Three-shank ripper
|
|
Ripping depth of ripper
|
mm
|
572
|
|
Lifting height of ripper
|
mm
|
592
|
|
Number of carriers (each side)
|
-
|
2
|
|
Number of track rollers (each side)
|
-
|
6
|
|
Number of track shoes (each side)
|
-
|
37
|
|
Width of track shoe
|
mm
|
510
|
|
Track gauge
|
mm
|
1880
|
|
Ground length and ground pressure
|
mm/MPa
|
2430-0.067
|
|
Pitch
|
mm
|
203.2
|
|
Forward speed
|
km/h
|
0-3.29
|
|
0-5.82
|
|
0-9.63
|
|
Reverse speed
|
km/h
|
0-4.28
|
|
0-7.59
|
|
0-12.53
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
