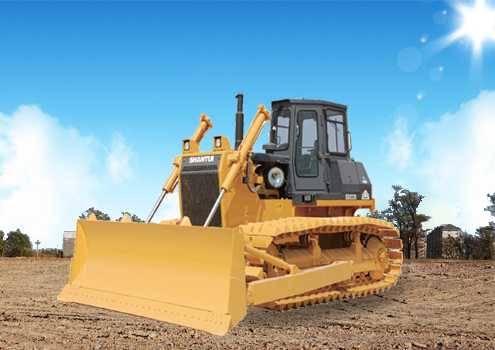

SD22 Bulldozer Technical Specifications:
|
ITEM
|
UNIT
|
SD22
|
|
L×W×H (Ripper not included)
|
mm
|
5750×3725×3395
|
|
Operating weight (Ripper not included)
|
t
|
23.4
|
|
Engine
|
-
|
Cummins
NT855-C280S10
|
|
Rated power
|
kW/rpm
|
162/1800
|
|
Gradeability
|
°
|
30
|
|
Blade type
|
-
|
Straight tilt blade U-blade
Semi-U blade Angle blade
|
|
Blade width
|
mm
|
Straight tilt blade 3725×1315
U blade 3800×1343
Semi-U blade 3725×1374
Angle blade 4365×1055
|
|
Dozing capacity
|
m3
|
Straight tilt blade 6.4
U blade 7.5
Semi-U blade 7.0
Angle blade 4.7
|
|
Ma× drop below ground of blade
|
mm
|
540
|
|
Lift height of blade
|
mm
|
1210
|
|
Ripper type
|
|
Single ripper Three-shank ripper
|
|
Ripping depth of ripper
|
mm
|
Single ripper 695
Three-shank ripper 666
|
|
Lifting height of ripper
|
mm
|
Single ripper515
Three-shank ripper 555
|
|
Number of carriers (each side)
|
-
|
2
|
|
Number of track rollers (each side)
|
-
|
6
|
|
Number of track shoes (each side)
|
-
|
38
|
|
Width of track shoe
|
mm
|
560
|
|
Track gauge
|
mm
|
2000
|
|
Ground length and ground pressure
|
mm/MPa
|
2730-0.077
|
|
Pitch
|
mm
|
216
|
|
Forward speed
|
km/h
|
0-3.6
|
|
0-6.5
|
|
0-11.2
|
|
Reverse speed
|
km/h
|
0-4.3
|
|
0-7.7
|
|
0-13.2
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
