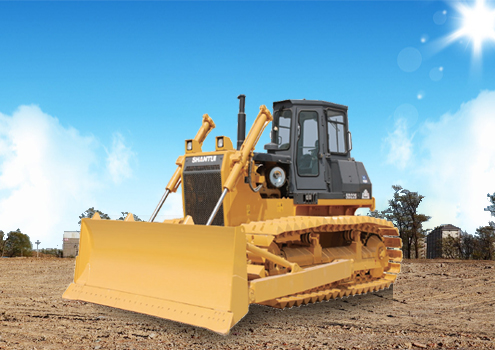

SD23 Bulldozer Technical Specifications:
|
ITEM
|
UNIT
|
SD23
|
|
L×W×H (Ripper not included)
|
mm
|
5874×3725×3360
|
|
Operating weight (Ripper not included)
|
t
|
24.6
|
|
Engine
|
-
|
Cummins NT855-C280S10
|
|
Rated power
|
kW/rpm
|
169/2000
|
|
Gradeability
|
°
|
30
|
|
Blade type
|
-
|
Straight tilt bladeU-bladeAngle blade
|
|
Blade width
|
mm
|
Straight tilt blade 3725×1395U blade3860×1379 Angle blade4365×1107
|
|
Dozing capacity
|
m3
|
Straight tilt blade 7.8 U blade 8.4Angle blade 5.4
|
|
Ma× drop below ground of blade
|
mm
|
540
|
|
Lift height of blade
|
mm
|
1210
|
|
Ripper type
|
-
|
Single ripperThree-shank ripper
|
|
Ripping depth of ripper
|
mm
|
Single ripper 695Three-shank ripper 666
|
|
Lifting height of ripper
|
mm
|
Single ripper 515 Three-shank ripper 555
|
|
Number of carriers (each side)
|
-
|
2
|
|
Number of track rollers (each side)
|
-
|
7
|
|
Number of track shoes (each side)
|
-
|
39
|
|
Width of track shoe
|
mm
|
560/610/660
|
|
Track gauge
|
mm
|
2000
|
|
Ground length and ground pressure
|
mm/MPa
|
2840-0.078
|
|
Pitch
|
mm
|
216
|
|
Forward speed
|
km/h
|
0-3.8
|
|
0-6.8
|
|
0-11.8
|
|
Reverse speed
|
km/h
|
0-4.9
|
|
0-8.5
|
|
0-14.3
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
