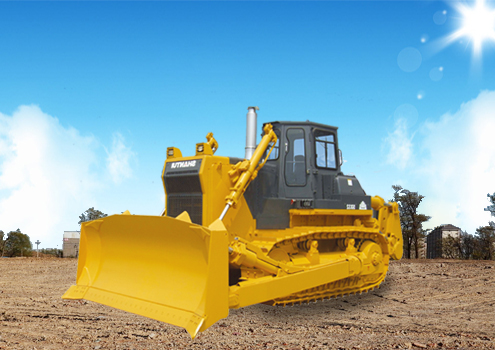

SD32 Bulldozer Technical Specifications:
|
ITEM
|
UNIT
|
SD32
|
|
L×W×H (Ripper not included)
|
mm
|
6880×4130×3725
|
|
Operating weight (Ripper not included)
|
t
|
37.2
|
|
Engine
|
-
|
CumminsNTA855-C360S10
|
|
Rated power
|
kW/rpm
|
235/2000
|
|
Gradeability
|
°
|
30
|
|
Blade type
|
-
|
Straight tilt bladeSemi-U bladeAngle blade
|
|
Blade width
|
mm
|
Straight tilt blade 4130×1590Semi-U blade 4030×1720Angle blade 5000×1140
|
|
Dozing capacity
|
m3
|
Straight tilt blade 10Semi-U blade 11.9Angle blade 6
|
|
Ma× drop below ground of blade
|
mm
|
560
|
|
Lift height of blade
|
mm
|
1560
|
|
Ripper type
|
-
|
Single ripperThree-shank ripper
|
|
Ripping depth of ripper
|
mm
|
Single ripper 1250Three-shank ripper 842
|
|
Lifting height of ripper
|
mm
|
Single ripper 955Three-shank ripper 883
|
|
Number of carriers (each side)
|
-
|
2
|
|
Number of track rollers (each side)
|
-
|
7
|
|
Number of track shoes (each side)
|
-
|
41
|
|
Width of track shoe
|
mm
|
560
|
|
Track gauge
|
mm
|
2140
|
|
Ground length and ground pressure
|
mm/MPa
|
3150-0.105
|
|
Pitch
|
mm
|
228.6
|
|
Forward speed
|
km/h
|
0-3.6
|
|
0-6.6
|
|
0-11.5
|
|
Reverse speed
|
km/h
|
0-4.4
|
|
0-7.8
|
|
0-13.5
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
