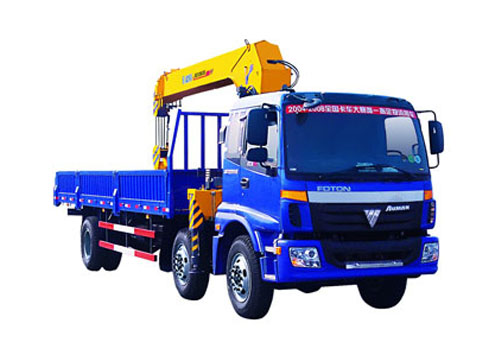

SQ12SK3Q Technical Specifications:
|
Model
|
SQ12SK3Q
|
Unit
|
|
Max Lifting Capacity
|
12000
|
kg
|
|
Max Lifting Moment
|
30
|
T.M
|
|
Recommend Power
|
30
|
kw
|
|
Max Oil Flow of Hydraulic System
|
63
|
L/min
|
|
Max Pressure of Hydraulic System
|
26
|
MPa
|
|
Oil Tank Capacity
|
160
|
L
|
|
Rotation Angle
|
All Rotation
|
|
Crane Weight
|
4200
|
kg
|
|
Installation Space
|
1300
|
mm
|
|
Choice of Chassis
|
DFL1250A9; DFL1311A3 ; CA1240PK2L7T4EA81; EQ5201GFJ6; BJ1317VNPJJ-S5; BJ5253ZKPJJ; DFL1253AX;
|
|
SQ12SK3Q Lifting capability diagram
|
|
Working radius (m)
|
2.5
|
4.8
|
7
|
9
|
12.5
|
|
Lifting capacity (kg)
|
12000
|
6000
|
3500
|
2700
|
1800
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
