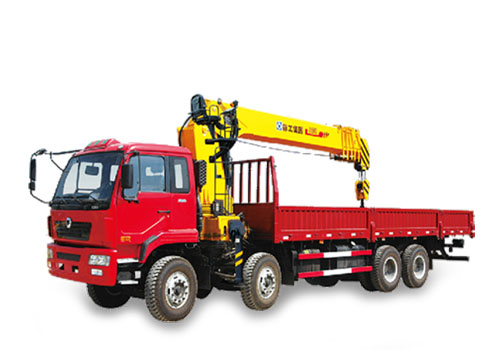

SQ14SK4Q Technical Specifications:
|
Model
|
SQ14SK4Q
|
Unit
|
|
Max Lifting Capacity
|
14000
|
kg
|
|
Max Lifting Moment
|
35
|
T.M
|
|
Recommend Power
|
32
|
kw
|
|
Max Oil Flow of Hydraulic System
|
63
|
L/min
|
|
Max Pressure of Hydraulic System
|
26
|
MPa
|
|
Oil Tank Capacity
|
160
|
L
|
|
Rotation Angle
|
All Rotation
|
|
Crane Weight
|
4800
|
kg
|
|
Installation Space
|
1300
|
mm
|
|
Choice of Chassis
|
BJ1317VNPJJ-S5; NXG1310D3ZEX
|
|
SQ14SK4Q Lifting capability diagram
|
|
Working radius(m)
|
2.5
|
5
|
8
|
11
|
13.2
|
15.8
|
|
Lifting capacity(kg)
|
14000
|
6000
|
3500
|
2300
|
1800
|
1200
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
