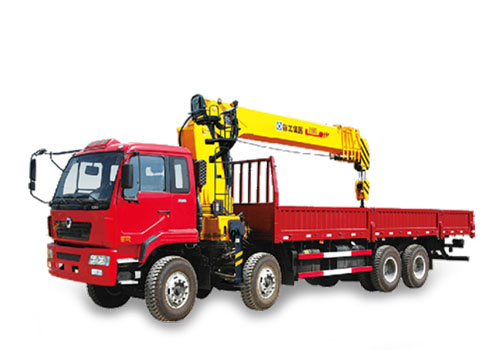

SQ16SK4Q Truck Mounted Crane

SQ16SK4Q Technical Specifications:

Model

SQ16SK4Q

Unit

Max Lifting Capacity

16000

kg

Max Lifting Moment

40

T.M

Recommend Power

45

kw

Max Oil Flow of Hydraulic System

80

L/min

Max Pressure of Hydraulic System

28

MPa

Oil Tank Capacity

260

L

Rotation Angle

All Rotation

Crane Weight

6020

kg

Installation Space

1400

mm

Choice of Chassis

BJ1317VNPJJ-S5;NXG1310D3ZEX;DFL1311A3;



SQ16SK4Q Lifting capability diagram

Working radius(m)

2.7

5.6

8.5

11.5

14.5

18.5

Lifting capacity(kg)

16000

7000

4200

3200

2200

1000

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
