SQ16ZK4Q Technical Specifications:
|
Model
|
SQ16ZK4Q
|
Unit
|
|
Max Lifting Moment
|
40
|
t.m
|
|
Max Lifting Capacity
|
16000
|
kg
|
|
Recommend Power Needed At Recommend Oil Flow
|
37
|
kw
|
|
Max Oil Flow of Hydraulic System
|
63
|
L/min
|
|
Rated Pressure Of Hydraulic System
|
31.5
|
MPa
|
|
Oil Tank Capacity
|
250
|
L
|
|
Rotation Angle
|
(360°) All Rotation
|
|
Crane Weight
|
5000
|
kg
|
|
Installation Space
|
1500
|
mm
|
|
Choice of Chassis
|
NXG1310D3ZEX;BJ1317VNPJJ-S5;DFL1311A3 ;
|
|
SQ16ZK4Q Lifting capability diagram
|
|
Working radius(m)
|
2.5
|
4.098
|
5.898
|
7.748
|
9.618
|
11.518
|
|
Lifting capacity(kg)
|
16000
|
9600
|
6600
|
4850
|
3500
|
2600
|
& Due to improvements made to the product, data herein is subject to change without notice.

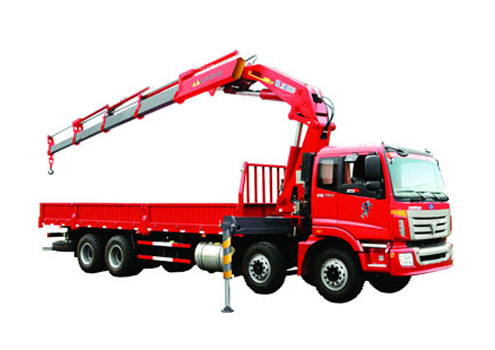

& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
