Model
|

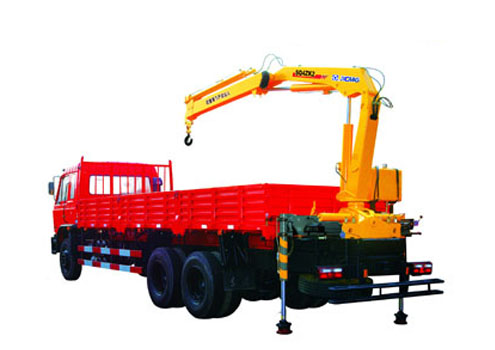

SQ4ZK2
|
Unit
|
|
Max Lifting Moment
|
8.4
|
t.m
|
|
Max Lifting Capacity
|
4000
|
kg
|
|
Recommend Power Needed At Recommend Oil Flow
|
14
|
kw
|
|
Max Oil Flow of Hydraulic System
|
25
|
L/min
|
|
Rated Pressure Of Hydraulic System
|
26
|
MPa
|
|
Oil Tank Capacity
|
60
|
L
|
|
Rotation Angle
|
370
|
?
|
|
Crane Weight
|
1200
|
kg
|
|
Installation Space
|
850
|
mm
|
|
Choice of Chassis
|
EQ1092FJ1;EQ1092FJ;DFL1120B D530;EQ1081GJ12D5;HFC1132KR1K3;LZ1120LAPT;HFC1083K103R1D;EQ1092F3GJ1;EQ5121GFJ;
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
