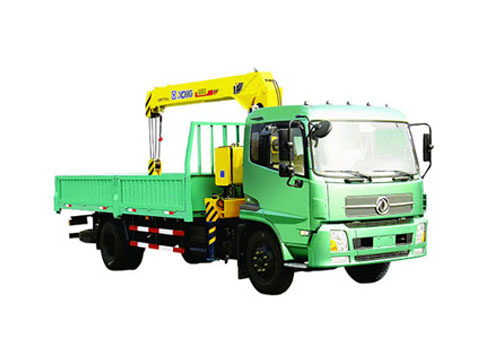

SQ5SK2Q Technical Specifications:
|
Model
|
SQ5SK2Q
|
Unit
|
|
Max Lifting Capacity
|
5000
|
kg
|
|
Max Lifting Moment
|
12.5
|
T.M
|
|
Recommend Powe
|
18
|
kw
|
|
Max Oil Flow of Hydraulic System
|
32
|
L/min
|
|
Max Pressure of Hydraulic System
|
18
|
MPa
|
|
Oil Tank Capacit
|
100
|
L
|
|
Rotation Angle
|
All Rotation
|
|
|
Crane Weight
|
2074/2170
|
kg
|
|
Installation Space
|
1000
|
mm
|
|
Choice of Chassis
|
CA1140PK2L3EA80; DFL1140B; EQ1126KJ1; HFC1132KR1K3; LZ1120LAPT; EQ1141NBJ2; EQ5201GFJ6; EQ5201GFJ6; NXG1160D3ZAL1X
|
SQ5SK2Q Lifting capability diagram
|
Working radius(m)
|
2.5
|
3.62
|
6.05
|
8.5
|
11
|
|
Lifting capacity(kg)
|
5000
|
2800
|
1500
|
1100
|
400
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
