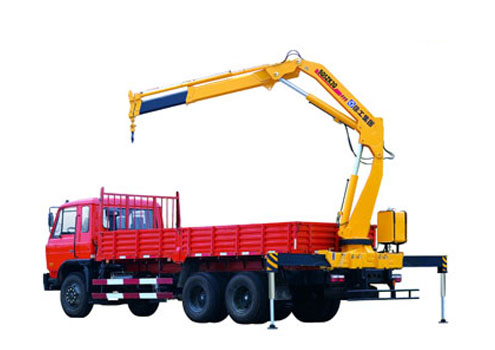

SQ5ZK2Q Technical Specifications:
|
Model
|
SQ5ZK2Q
|
Unit
|
|
Max Lifting Moment
|
10.5
|
t.m
|
|
Max Lifting Capacity
|
5000
|
kg
|
|
Recommend Power Needed At Recommend Oil Flow
|
18
|
kw
|
|
Max Oil Flow of Hydraulic System
|
25
|
L/min
|
|
Rated Pressure Of Hydraulic System
|
28
|
MPa
|
|
Oil Tank Capacity
|
90
|
L
|
|
Rotation Angle
|
(360°)All Rotation
|
?
|
|
Crane Weight
|
2011
|
kg
|
|
Installation Space
|
1050
|
mm
|
|
Choice of Chassis
|
CA1140PK2L3EA80 ; DFL1140B; EQ1126KJ1; HFC1132KR1K3; LZ1120LAPT; EQ1141NBJ2; EQ5121GFJ; EQ5201GFJ6; HN1310P29D6M3J ; NXG1160D3ZAL1X;
|
|
SQ5ZK2Q Lifting capability diagram
|
|
Working radius (m)
|
2.1
|
4.44
|
6.2
|
8.01
|
|
Lifting capacity (kg)
|
5000
|
2400
|
1600
|
1050
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
