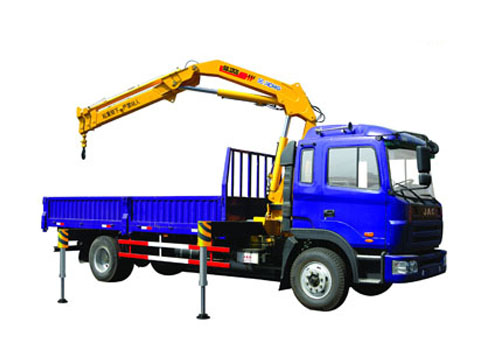

SQ6.3ZK2Q Technical Specifications:
|
Model
|
SQ6.3ZK2Q
|
Unit
|
|
Max Lifting Moment
|
13.23
|
t.m
|
|
Max Lifting Capacity
|
6300
|
kg
|
|
Recommend Power Needed At Recommend Oil Flow
|
18
|
kw
|
|
Max Oil Flow of Hydraulic System
|
25
|
L/min
|
|
Rated Pressure Of Hydraulic System
|
28
|
MPa
|
|
Oil Tank Capacity
|
90
|
L
|
|
Rotation Angle
|
(360°)All Rotation
|
°
|
|
Crane Weight
|
2115
|
kg
|
|
Installation Space
|
1050
|
mm
|
|
Choice of Chassis
|
CA1163P7K2L3E ;CA1176PK2L9T3A95 CA1170PK2L7T3EA80; CA1140PK2L3EA80 ; DFL1140B;EQ1126KJ1;HFC1132KR1K3;HFC1202KR1K3;EQ1141NBJ2;EQ5161GFJ7;BJ1317VNPJJ-S5;EQ5201GFJ6;LZ1160LCMT;DFL1250A9;BJ5317ZNPJJ-S;HN1310P29D6M3J ;NXG1160D3ZAL1X;
|
|
SQ6.3ZK2Q Lifting capability diagram
|
|
Working radius (m)
|
2.1
|
4.44
|
6.2
|
8.01
|
|
Lifting capacity (kg)
|
6300
|
2700
|
1700
|
1200
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
