Introduction

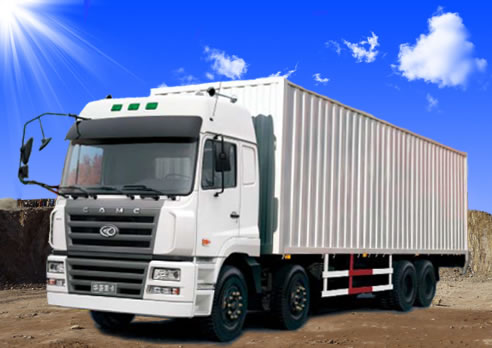

8×4 cargo truck is one of our hot selling products. It is not only used to transport cargo, but also able to tow other vehicles. This heavy duty truck is well known for strong power, low oil consumption, stable performance and multiple personalized configurations. It adopts CUMMINS engine with strong load capacity, strong power, high stability, strong climbing ability and high economy speed. The driving cab is luxurious, elegant, beautiful, safe and comfortable. 8×4 cargo truck consists of cab, engine, transmission, front axle, rear axle, tire and other spare parts. Due to the good performance of each component, our heavy duty trucks can meet customers’ specific transportation requirements.
Characteristics
1.CAMC 8×4 cargo truck is characterized by large carrying capacity, economical price and cost-effective performance.
2.This heavy duty truck also features high reliability, high load capacity and high comfortableness.
3.Our 8×4 cargo trucks own the advantages of compact structure, elegant line, broad vision, big door opening angle and cab tilting angle, easy maintenance, and so on.
4.This heavy duty truck is featured with reasonable arrangement and the major assembly works coordinately and reliably, making the vehicle enjoy good performance in power, safety and other aspects.
Technical Parameters
| Product Name |
Cargo Truck |
| Product Model |
HN1310P29D6M3 |
| Place of Origin |
Maanshan, Anhui, China |
| G. V. W |
31 ton |
| Kerb mass |
12.8 ton |
| Payload |
18 ton |
| Drive Type |
Left Hand (Optional RHD) |
| Drive Model |
8 × 4 |
| Engine |
Brand |
CUMMINS |
| Model |
L340 30 |
| Max. Power (kw/r/min) |
250/2200 |
| Displacement |
8300 ml |
| Emission Standard |
Euro II |
| Clutch |
Model |
Φ430 diaphragm spring |
| Transmission |
Brand |
FAST GEAR |
| Model |
RT11509C |
| Rear Axle (Drive Axle)-Load |
13 ton × 2 |
| Front Axle-Load |
7.5 ton × 2 |
| Cabin Type |
European Flat Roof (Optional CF, CH, EH) |
| Cabin |
With A/C, Radio, Bunk |
| Steering System |
HITACHI |
| Wheelbase (mm) |
1850+4605+1350 |
| Wheel/Tire |
Type |
Bias/Radial |
| Model |
11.00-20/11.00R20/12.00-20/12.00R20 |
| Tire Number |
12+1 |
| Oil Tank |
Volume (L) |
320 |
| Dimensions (L × W × H) |
Overall (mm) |
11980 × 2495 × 3100 |
| Body Interior (mm) |
9600 × 2300 × 800 |
| Front Overhang/Rear Overhang (mm) |
1370/2845 |
| Approach/Departure Angle (°) |
24/23 |
| No. of Steel Spring (Front/Rear) |
9/12 |
| Max. Speed (km/h) |
90 |
Established in 2003, Auhui Hualing Automobile Co., Ltd is a leading supplier and exporter of cargo trucks in China. In addition to this heavy duty truck, our products also cover tractor truck, mixer truck, general dump truck, mining dump truck, special vehicle chassis and overall vehicle series for engineering and municipal government, heavy axle, and so on. We have a professional technical team, some of who have decades of working experience and predominant R & D ability. Our 8×4 cargo trucks are exported to more than 60 nations and regions, such as Eastern Europe, North Africa, the Middle East, Central Asia, Southeast Asia, South America, etc. CAMC heavy duty trucks are highly appraised by customers both home and abroad.
