Product Overview

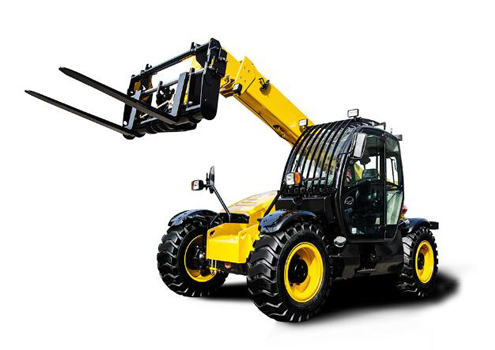

XC6 is the latest XCMG' agricultural version telehandler which features the highest operation simplicity, safety and efficiency. The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.
Characteristics
The panoramic cab and the XCMG’s visual identity appearance design feature good fashion and elegance.
With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
The frame leveling function equipped (XC6-3514K) realizes powerful site adaptability and meets the needs of diversified working conditions.
The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
The electro-hydraulic proportional control for the working system features accurate, stable, and efficient operations.
The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users’ individual needs.
XCMG XC6-3007K telescopic handlers Main Parameters:
| |
Unit |
XC6-3007K |
| Gross weight |
kg |
7450 |
| Engine power |
kW |
90 |
| Rated load |
kg |
3000 |
| Effective load at maximum |
kg |
1250 |
| forward reach |
| Maximum lifting height |
mm |
6950 |
| Maximum forward reach |
mm |
3690 |
| Center distance of load |
mm |
500 |
| Luffing angle |
° |
-3~65 |
| Fork angle |
° |
90~18 |
| Maximum traction force |
kN |
≥55 |
| Gradeability |
° |
≥25 |
| Maximum traveling speed |
km/h |
40* |
| Turning radius |
mm |
≤4020 |
| Braking distance |
m |
≤8 |
| Overall length |
mm |
4820 |
| Overall width |
mm |
2355 |
| Overall height |
mm |
2460 |
| Wheelbase |
mm |
2850 |
| Wheel tread |
mm |
1920 |
| Fork length |
mm |
1000 |
| Bale clamp diameter |
mm |
800-1800 |
| No further information of sample contents, product structure and configuration parameters updates. |
| There maybe some difference between sample books and material objects.Please kind prevail. |
| Configuration: 405/70-20TL, with maximum speed at 35km/h |
| Configuration: 405/70-24TL, with maximum speed at 40km/h |
