XC740K Skid loader Technical Specifications:
| ITEMS |
Specification |
Unit |
| MODEL |
XC740K |
|
| Engine Model |
ZHEJIANG XINCHAI |
Unit |
| Rated power/speed |
36.8/2500 |
kW/rpm |
| Bucket capacity |
0.45 |
m3 |
| Rated load |
750 |
kg |
| Operating weight |
3140 |
kg |
| Dumping clearance |
2375 |
mm |
| Dumping reach |
575 |
mm |
| Max.travel speed |
14.3 |
km/h |
| Front turning radius without bucket |
1183 |
mm |
| Front turning radius with bucket |
2066 |
mm |
| Ground clearance |
185 |
mm |
| Diesel fuel tank capacity |
80 |
L |
| Tire model |
10-16.5 |
|
| Overall dimensions(LxWxH) |
3310×1800×1950 |
mm |
& Due to improvements made to the product, data herein is subject to change without notice.

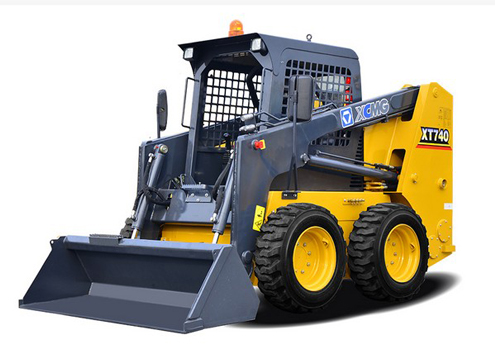

& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
