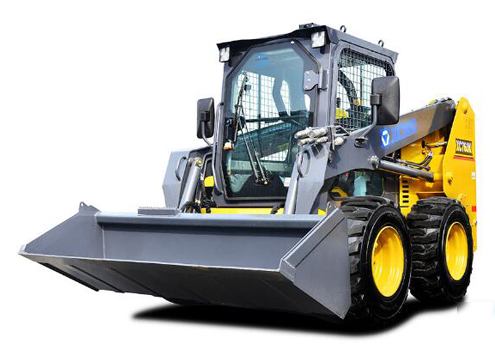

XC760K Skid loader Technical Specifications:
| ITEMS |
Specification |
Unit |
| MODEL |
XC760K |
|
| Engine Model |
YANGMA |
|
| Rated power/speed |
61.3/2500 |
kW/rpm |
| Bucket capacity |
0.6 |
m3 |
| Rated load |
1080 |
kg |
| Operating weight |
3450 |
kg |
| Dumping clearance |
2450 |
mm |
| Dumping reach |
570 |
mm |
| Max.travel speed |
12.5 |
km/h |
| Front turning radius without bucket |
1320 |
mm |
| Front turning radius with bucket |
2230 |
mm |
| Ground clearance |
205 |
mm |
| Diesel fuel tank capacity |
95 |
L |
| Tire model |
12-16.5 |
|
| Overall dimensions(LxWxH) |
3610*2000*1960 |
mm |
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
