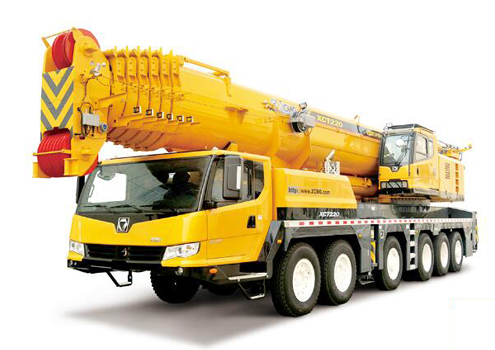

XCMG truck crane XCT220 Technical Specifications:
| Dimensions |
Unit |
Parameter |
| Overall length |
mm |
15570 |
| Overall width |
mm |
3000 |
| Overall height |
mm |
3990 |
| weight |
| Dead weight in travel state |
kg |
65000 |
| 1st axie load |
kg |
10000 |
| 2nd axie load |
kg |
10000 |
| 3rd axie load |
kg |
10000 |
| 4th axie load |
kg |
13000 |
| 5th axie load |
kg |
13000 |
| 6th axie load |
kg |
9000 |
| Power |
| Superstructure Engine |
TAD722VE |
| Superstructure engine rated output |
kw/(r/min) |
194/2100 |
| Carrier engine |
OM460LA.E3A/1 |
| Carrier engine reted output |
kw/(r/min) |
360/1800 |
| Carrier engine reted torque |
N.w/(r/min) |
2200/1100 |
| Travel |
| Max.travelspeed |
km/h |
80 |
| Min.turning diameter |
m |
26 |
| Min.ground clearnce |
mm |
300 |
| Approach angle |
° |
19 |
| Departure angle |
° |
13 |
| Max.gradeability |
% |
≥40 |
| Fuel consumption of per 100km |
L |
60 |
| Lifting performance |
| Max.total rated lifting load |
t |
220 |
| Min.rated working radius |
m |
3 |
| Turing radius at swing table tall |
mm |
5078 |
| Base boom max.load moment |
kN.m |
6820 |
| Base boom |
m |
13 |
| Full-extend boom |
m |
68 |
| Full-extend boom+Jib |
m |
63.6+36 |
| Outrigger longitudinal distance span |
m |
8.3 |
| Outrigger lateral distance span |
m |
8.5 |
| Working speed |
| Boom elevating time |
s |
65 |
| Boom telescoping time |
s |
650 |
| Max.slewing speed |
r/min |
1.8 |
| Main winch max.speed |
m/min |
115 |
| Auxiliary winch max.speed(no load) |
m/min |
110 |
