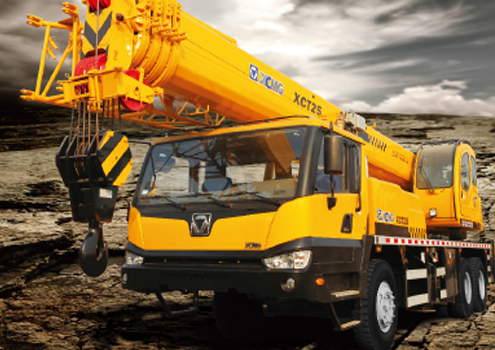

XCT25E Truck Crane Technical Specifications:
|
Dimensions
|
Unit
|
|
|
Overall length
|
Mm
|
12500
|
|
Overall width
|
Mm
|
2500
|
|
Overall height
|
Mm
|
3385
|
|
Weight
|
|
|
|
Dead weight in travel state
|
Kg
|
32000
|
|
Front axle load
|
Kg
|
6800
|
|
Rear axle load
|
Kg
|
24800
|
|
Power
|
|
|
|
Engine model
|
|
SC9DF300Q3 WD615.329
|
|
Engine rated output
|
Kw(r/min)
|
221/2200 213/2200
|
|
Engine rated torque
|
N.m(r/min)
|
1250 1160
|
|
Travel
|
|
|
|
Max.travel speed
|
Km/h
|
80
|
|
Min. turning diameter
|
M
|
≤22
|
|
Min. ground clearance
|
Mm
|
275
|
|
Approach angle
|
?
|
18
|
|
Departure angle
|
?
|
13
|
|
Max. gradeability
|
%
|
40
|
|
Fuel consumption of per 100km
|
L
|
37
|
|
Lifting performance
|
|
|
|
Max. total rated lifting load
|
T
|
25
|
|
Min. rated working radius
|
M
|
3
|
|
Turning radius at swing table tail
|
Mm
|
3260
|
|
Base boom max. load moment
|
Kn.m
|
961
|
|
Base boom
|
M
|
10.4
|
|
Full-extend boom
|
M
|
40
|
|
Full-extend boom+Jib
|
m
|
48.3
|
|
Outrigger longitudinal distance span
|
M
|
5.36
|
|
Outrigger lateral distance span
|
M
|
6
|
|
Working speed
|
|
|
|
Boom elevating time
|
S
|
68
|
|
Boom telescoping time
|
S
|
150
|
|
Max. slewing speed
|
r/min
|
2.5
|
|
Main winch max. speed(single line)
|
m/min
|
120
|
|
Auxiliary winch max.speed(single line)
|
m/min
|
120
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
