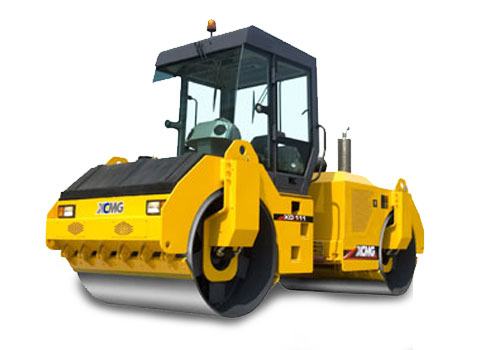

XD111E Roller

XD111E Road Roller Technical Specifications:

Type

Unit

XD111E

Operating weight (including cab)

kg

11300

load on front drum

kg

5650

Load on rear wheels

kg

5650

Static linear load

N/cm

298/298

Speed

km/h

0—10

Gradeability in theory

%

30

Minimum turning radius

mm

4050/5950

Crab-walking distance

mm

160

Minimum ground clearance

mm

340

Wheel base

mm

3700

Steering angle

± °

35

Swing angle

±°

8

Vibration frequency

Hz

45—48

Nominal amplitude

mm

0.41/0.8

Centrifugal force

kN

80/133

Model and manufacturer


DEUTZ BF4M2012C

Rated rotating speed

r/min

2300

Rated power

kW

98

Rated oil wear

g.kw/h

205

Water tank capacity

L

2×450

Fuel tank capacity

L

210


& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
